Wooden Camera V-Lock Base Station and Wedge Kit
Out of Stock – Please email us for an accurate lead time.
Description:

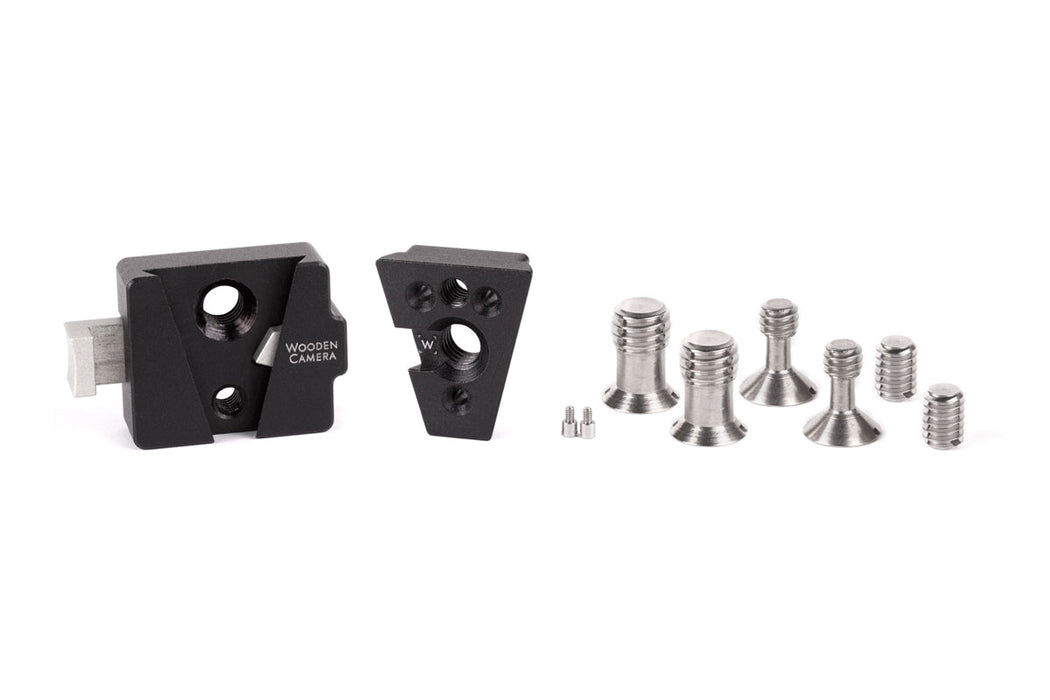

V-Lock Base Station and Wedge Kit is a quick release set based on the standard V-Lock or V-Dock as it is sometimes referred. The Base Station portion can bolt into a 1/4-20 or 3/8-16 hole using the included screws. Set screw can also be installed to prevent twisting. Additionally the Base Station has the hole pattern for the ARRI accessory mount pins. The Base Station is also threaded for 1/4-20 and 3/8-16 so accessories can screw into it.
The V-Lock Accessory Wedge portion of the kit can also bolt into a 1/4-20 or 3/8-16 hole using the included screws and it is also threaded for 1/4-20 and 3/8-16 so accessories can screw into it. M3 hole pattern is also available for attaching to devices like the Preston MDR4 Mounting Plate and the Smartphone Clamp.
*Not compatible with V-Mount battery accessories
Specifications:
Weight: 136 g (0.3 lbs)
Dimensions: 50.8 x 76.2 x 25.4 mm ( 2 x 3 x 1 in)
