Wooden Camera Sony E-Mount to LPL Mount Adapter (Pro)
Out of Stock – Please email us for an accurate lead time.
Description:

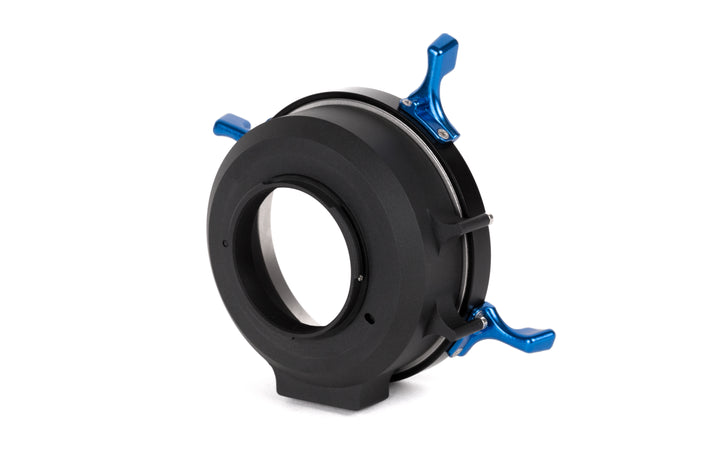

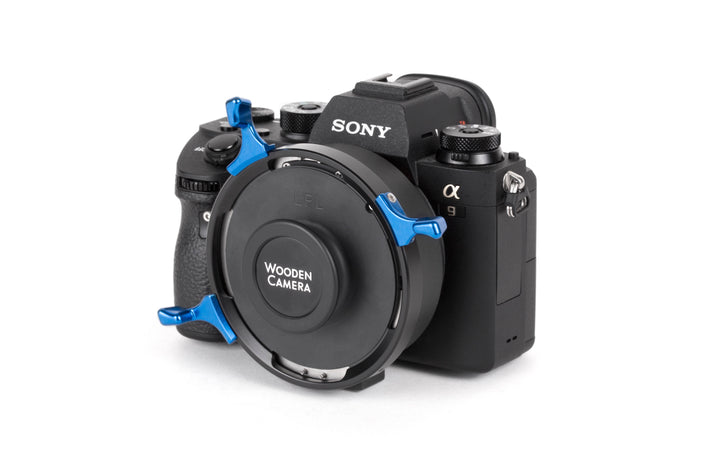

ARRI LPL Mount for Sony E-Mount Cameras allows ARRI LPL Signature Prime Lenses to be used with Sony E-Mount Full Frame Alpha series cameras.
Mount includes a foot with 1/4-20 threaded hole for attaching to a tripod eliminating strain on the camera. The support foot can also be attached to the Unified DSLR Cage natively using the vertical support hole and the Unified Lens Adapter Support Kit. LPL Cap included to prevent dust from entering sensor area when lens is not attached.
In the factory, Wooden Camera set the flange focus using collimation tools. You only need to adjust the shims should you find that your camera is out of calibration. The adapter is shimmable by loosening six socket cap screws around the collar area, separating the two sections, and adding color coded shims of various thickness. Back focus should be checked using collimation tools or a wide lens focused to infinity.
ARRI's LPL to PL Adapter is also compatible, allowing easy change from standard PL lenses to LPL lenses. LPL Mount is passive and does not communicate lens data to the camera.
Please Note: Sony cameras with a positive locking E-Mount are not compatible with this product. This includes the FX9 and FS7mkII.
Shim Set (stackable to achieve necessary thickness)
Silver .0127mm (0.0005")
Amber .0254mm (0.001")
Purple .0381mm (0.0015")
Red .0508mm (0.002")
Green .0762mm (0.003")
Tan .1016mm (0.004")
Blue .127mm (0.005")
Specifications:
Weight: 216g (0.5 lbs)
Dimensions: 81.8 x 81.8 x 46.5 mm (3.2 x 3.2 x 1.8 in)
