Wooden Camera Quick Release Bridgeplate (19mm Studio)
Out of Stock – Please email us for an accurate lead time.
Description:

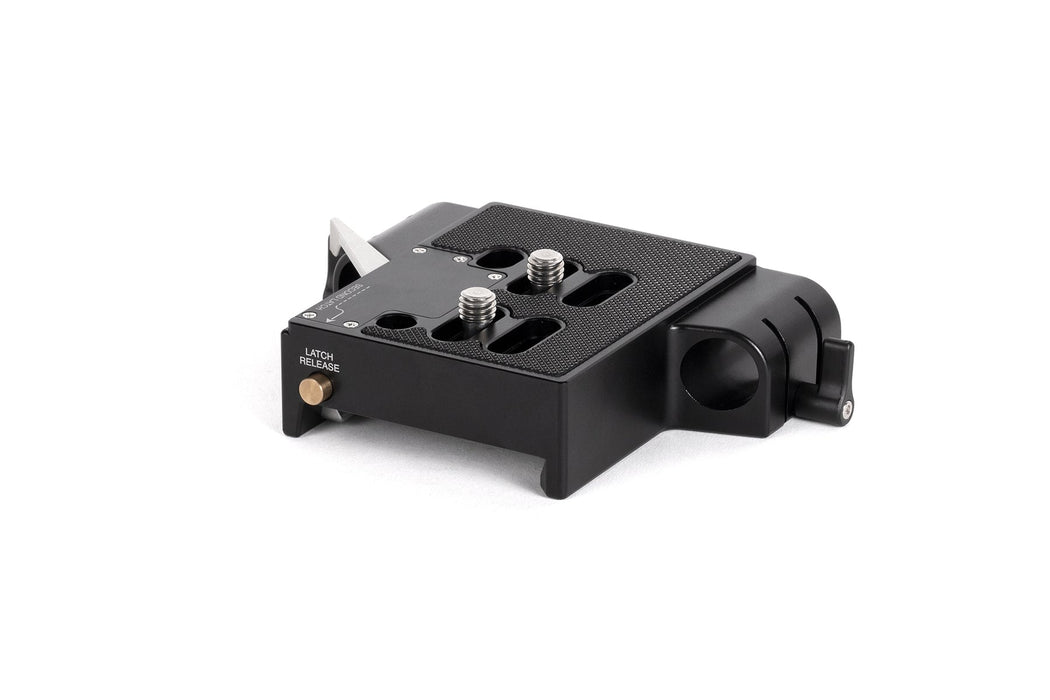

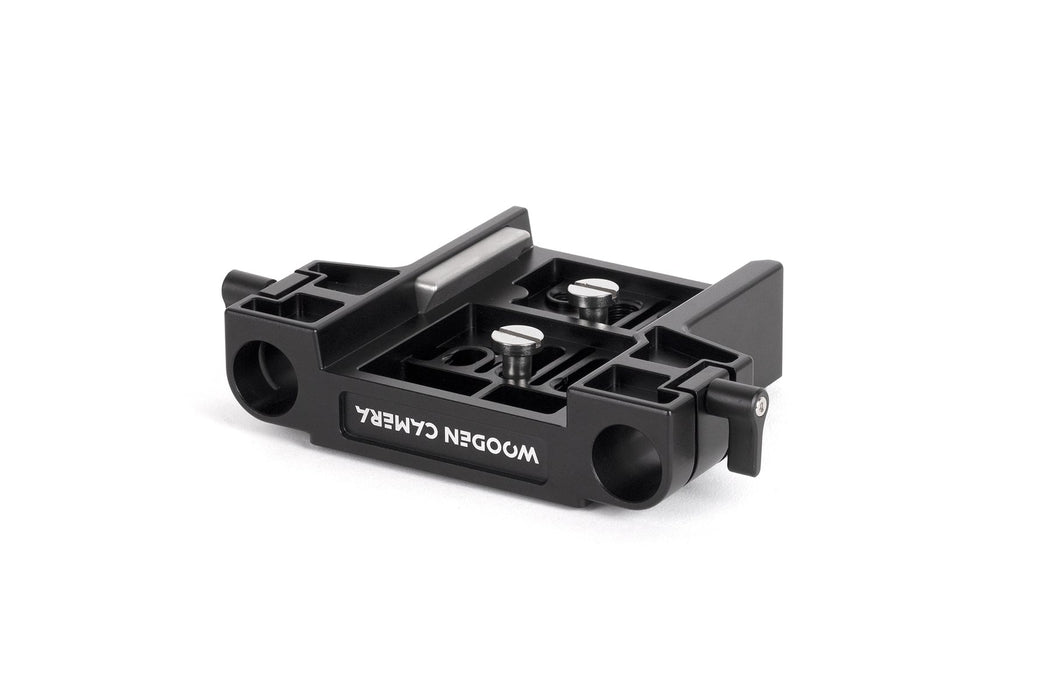

Quick Release Bridgeplate (19mm) is an ARRI standard bridgeplate with 19mm rod openings. The new design allows the bridgeplate to drop down and lock on, anywhere along an ARRI standard dovetail.
A safety catch adds security to the lever release function. Unlock the lever half way to slide on the dovetail or push the release button to allow the lever to move further and release the camera vertically.

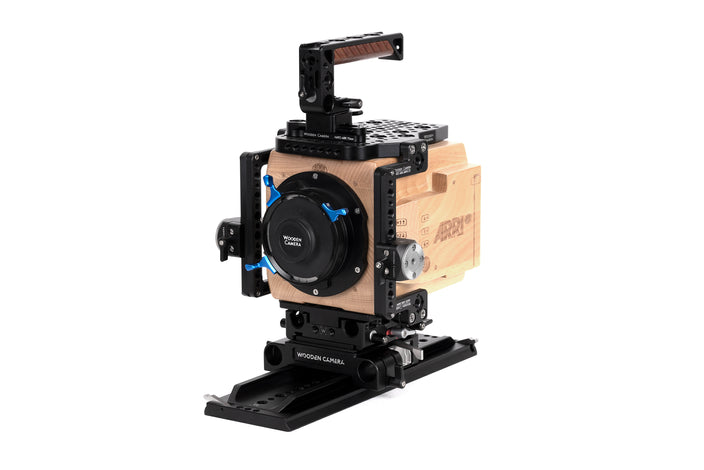

ARRI standard height makes it compatible with most camera rigs including those using Wooden Camera's Unified Baseplates. Rubberized top coating prevents twisting and slotted design accommodates non-standard screw spacings.
When combining this Bridgeplate with a RED® DSMC2™ or earlier RED® systems, the lens height will be approximately +3mm too tall. If you need to achieve the correct RED® lens height spacing, please choose the Unified Bridgeplate (19mm). QR
Includes:
(2) 3/8-16 screws
Specifications:
Weight: 420g (0.93 lbs)
Dimensions: 101.6 x 152.4 x 31.75 mm (4 x 6 x 1.25 in)
