Wooden Camera AIR EVF Mount (RED DSMC2 EVF)
Out of Stock – Please email us for an accurate lead time.
Description:

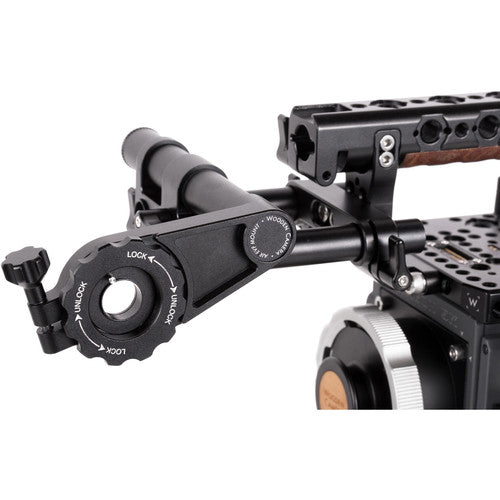

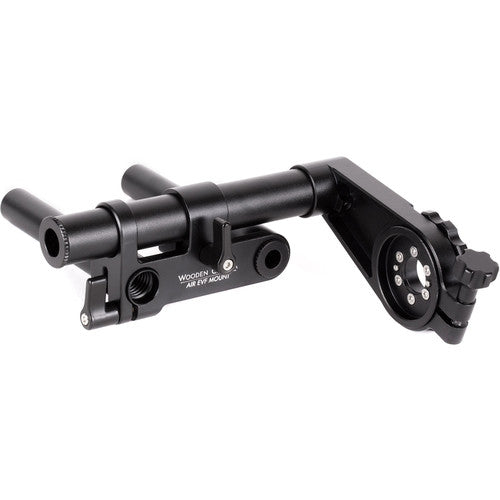

AIR EVF Mount (RED® DSMC2™ EVF) is an ultra-lightweight EVF mount for the RED® DSMC2™ viewfinder that allows for easy positioning. The system moves forwards and backwards over the lens area on two 15mm rods, left and right on a 19mm rod, and a friction knuckle allows for quick tilting of the EVF without having to loosen a thumbscrew.
The knuckle's thin design allows for both straight and right angle connectors to be installed into the EVF. If using the Wooden Camera Easy Top (DSMC2™), an LCD/EVF Cable (RED®, R/R, 24") is ideal as it gives enough length for adequate positioning in most configurations. If using without the Easy Top, a Male Pogo to Male LCD/EVF Cable (24") would be recommended.

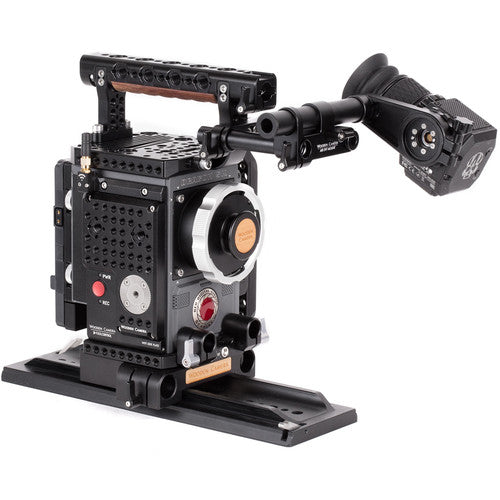

A top 15mm lightweight rod mount is required for proper attachment of the AIR EVF Mount, and the Master Top Handle, shown in the example photos and video is a good option for this. Alternatively, if you have the NATO Handle Plus v2 Kit or similar, a Rod Clamp (15mm LW) can be added to the front which would hold the two 15mm rods. Please contact us if you need any configuration assistance
The tool-less design allows quick installation and removal of EVF and if further extension is needed for tripod shooting, the AIR EVF Extension Arm (RED® DSMC2™ EVF) can be installed using the same method.
Specifications:
Weight: 282g (0.6 lbs)
Dimensions: 158.8 x 145.5 x 45.4 mm (6.3 x 5.7 x 1.8 in)
