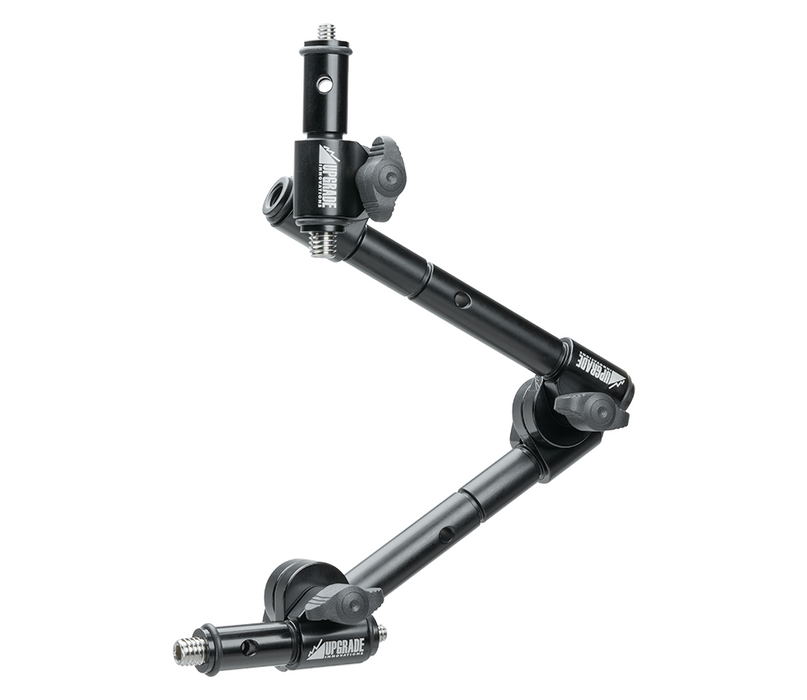

Upgrade Innovations 12175 Double 6" Rudy Arm Universal 1/4-20" & 3/8-16" (Kipp Wing)
Out of Stock – Please email us for an accurate lead time.
Description
The Double 6″ Rudy Arm – Universal 1/4-20 & 3/8-16 is designed for universal use with industry standard 1/4-20 and 3/8-16 mounting options on each end, three independent locking pivot points for local control and two 6″ length 15mm rods.
This modular lightweight design is Upgrade Innovation's base Rudy Double Arm Kit, and is an ideal accessory to keep on hand.
Supports up to 6.8kg / 15lbs
Total Reach of 33 cm / 13”
Weight: 0.36kg / 0.79 lbs
The Double 6″ Rudy Arm – Universal 1/4-20 & 3/8-16 includes:
2x 15mm Rod – 6″ Length
2x 15mm Pivot Clamp Ball-Loc with Kipp Wing
1x 15mm Pivot Clamp Friction-Loc with Kipp Wing
2 x 15mm Mounting Spud 1/4 and 3/8 Male Thread – 2.5″
O-Ring Kit
Add or remove sections of the arm with Upgrade Innovation's unique O-Ring design. Remove larger, captive O-rings from the 15mm rod or spuds to remove/adjust sections of the arm. Smaller friction o-rings allow for controlled adjustments along the rods.
The Rudy Arm system is interchangeable, so you can use this arm in conjunction with other Rudy Arm components and 15mm accessories. Build possibilities are truly endless with the entire arm being a 15mm mounting surface (always check load rating when re-configuring parts).
Solidly built with premium 6061 aircraft aluminum, Mil-Spec anodizing & stainless steel hardware.
