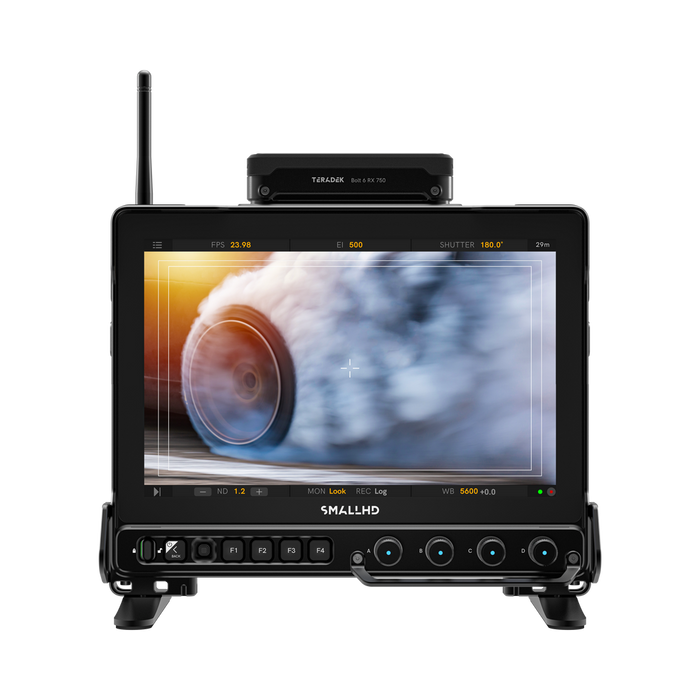

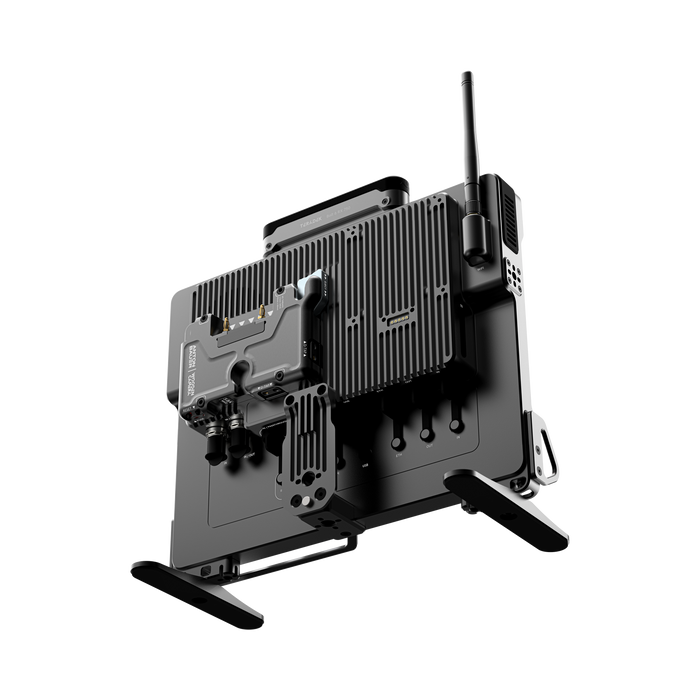

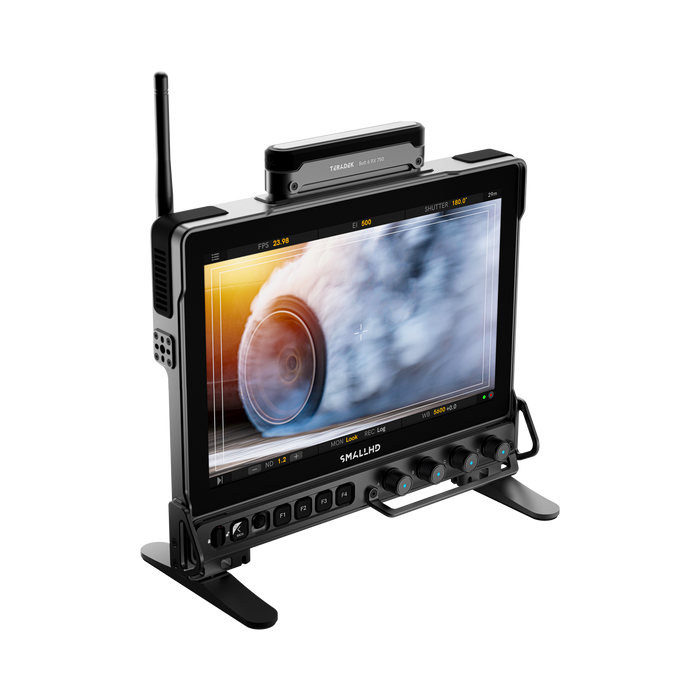

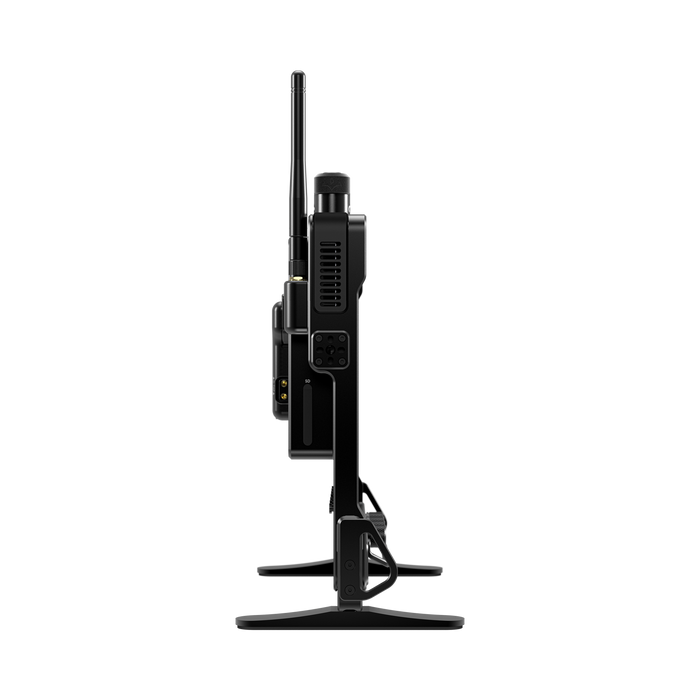

SmallHD Ultra 10 Bolt 6 RX (750 ft) (Gold Mount)
Out of Stock – Please email us for an accurate lead time.
Description
Ultra 10 strikes the perfect balance between screen size and lightweight portability with a feature-packed 10-inch Ultra-Bright Monitor designed to adapt to any production scenario. Key features include 2000 nits of brightness, 6G-SDI architecture, an impact-resistant IP54-certified form factor, and more ways than ever to customize your PageOS workflow via touchscreen, joystick, large tactile buttons, and new multi-function rotary encoder knobs for maximum control in all conditions.
The Ultra 10 Bolt 6 RX features an integrated Teradek Bolt 6 Receiver, allowing you to receive zero-delay wireless video from your camera via the new internal V-Antenna at ranges up to 750 or 1500 feet. It is available as a Gold Mount or V-Mount option.
Ultra 10 is our first IP54-certified monitor, which is defined as resistant to water spray from any direction and protection against dust and dirt in extreme environments while operating in variable temperatures ranging from 0ºC to 40ºC. The chassis features raised edges protecting the front glass of the display and user-replaceable shock-absorbing bumpers to mitigate drops, tumbles, and impacts
Ultra 10 comes with 5-pin locking USB and Ethernet ports for optional ARRI, Sony VENICE, BURANO and FX6, and RED® Camera Control (license and cable sold separately).
Specifications
Panel Type
IPS LCD with touch
Diagonal Size
10.1"
Resolution
1920x1200
Contrast
1000:1
Color Depth
10-bit Processing (8-bit panel)
Backlight Type
LED Edgelit
Refresh Rate
Synchronizes with input from 48Hz to 60Hz
SDI
1x BNC 6G input and 1x BNC 6G selectable input/output
HDMI
1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio
1x 3.5mm 3-pin Stereo Headphone Jack
Ethernet
RJ45 and GPI
Monitoring I/O
SDI: 1x BNC 12G input and 1x BNC 12G selectable input/output HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size) Audio: 1x 3.5mm 3-pin Stereo Headphone Jack Ethernet: RJ45 and GPI

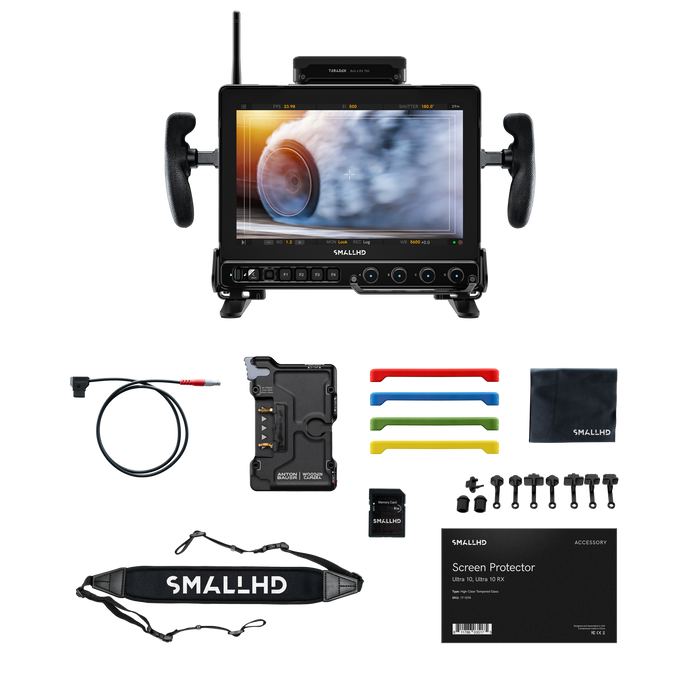

In the Box
- 1x Ultra 10 Bolt 6 RX
- 1x D-Tap to 2-Pin Power Cable – 36in
- 1x Micro Battery Plate – Ultra Series
- 1x Ultra 10 Bolt 6 Color Bands
- 1x Monitor Handles Neck Strap
- 1x Ultra Screen Protector for Ultra 10
- 1x 8GB SD Card
- 1x SmallHD Cleaning Cloth
