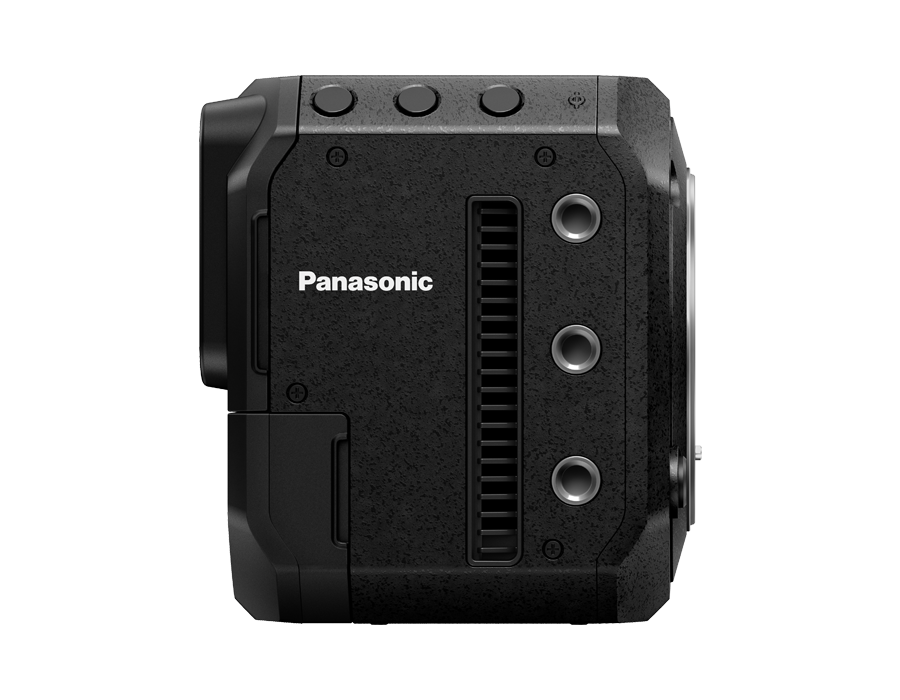

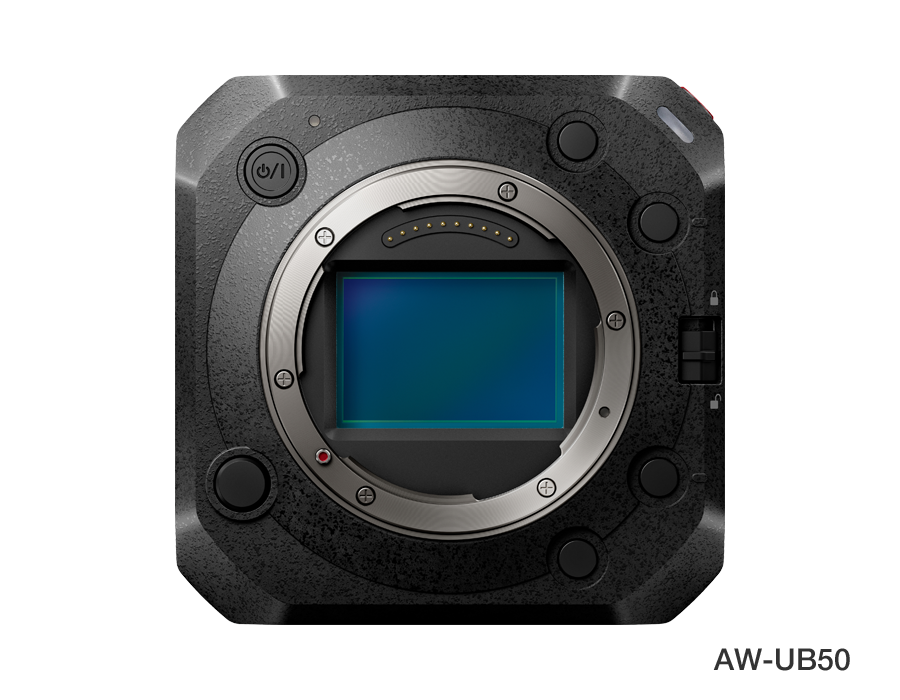

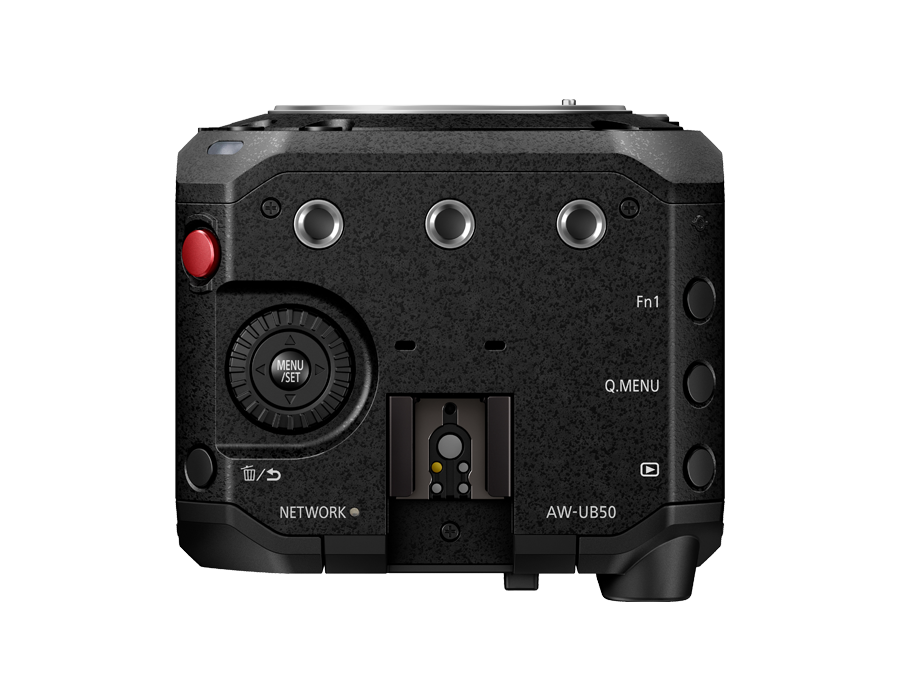

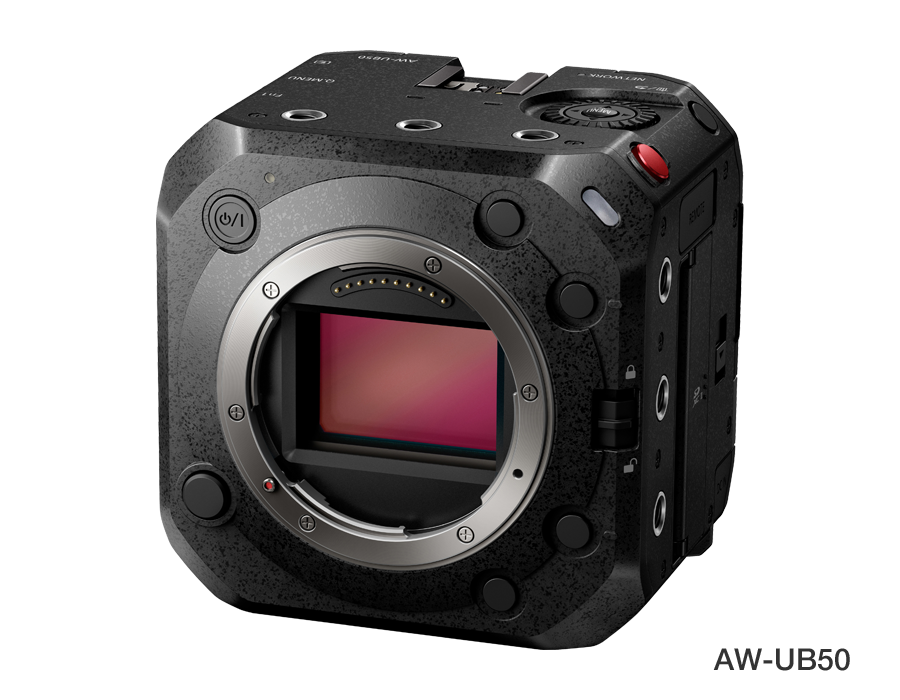

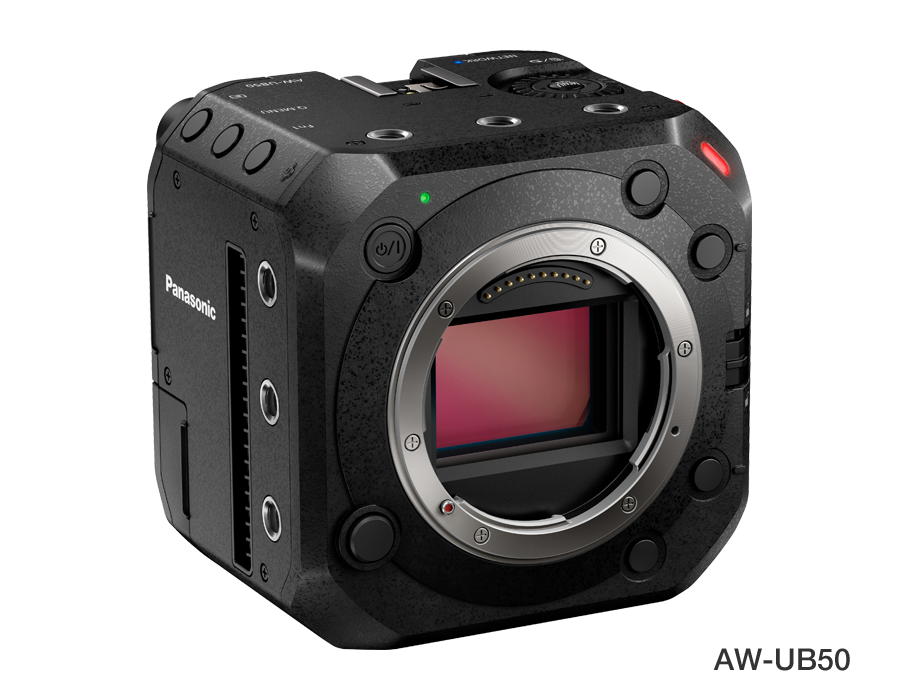

Panasonic AW-UB50 4K Multipurpose Box Camera (L mount)
Out of Stock – Please email us for an accurate lead time.
Description
The AW-UB50 is a box-style cameras with a large sensor housed in a compact body, offering excellent resolution and expression capabilities.
It adopts a common IP control protocol that enables seamless integration with Panasonic remote camera systems for efficient operation.
High-sensitivity Large-format Sensor
The AW-UB50 is equipped with a 24.2-megapixel effective full-size MOS sensor, and achieves high sensitivity by optimizing dynamic range and signal-to-noise ratio for exceptional resolution, tonal gradation, color reproduction, and low noise.
Dual Native ISO
This model comes with Dual Native ISO for high-sensitivity video even in low-light environments, allowing shooting with compact lighting equipment or natural light without significantly compromising video quality. This also reduces the need for extensive post-production work, such as noise reduction. In ISO Auto mode, ISO sensitivity is displayed in real time to visualize noise levels while shooting.
Versatile Interchangeable Lens
The AW-UB50 has a dedicated interchangeable lens. In addition to the high optical performance developed through LUMIX, it delivers excellent image quality, catering to a wide range of needs, such as capturing dramatic expression changes or zooming in on decisive scenes.
Multiple I/O Terminals

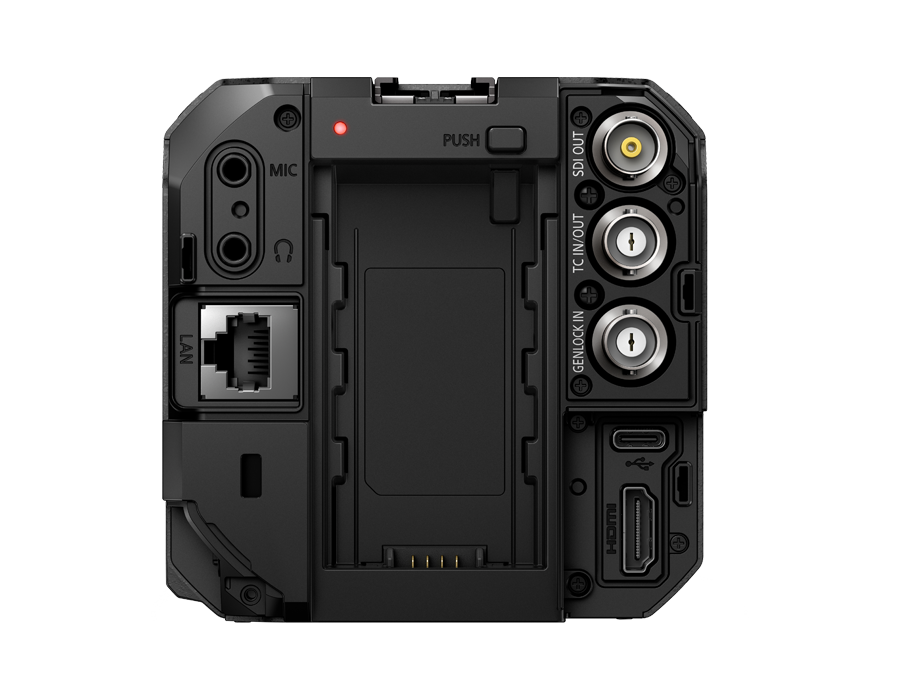

The AW-UB50 flexibly adapts to diverse scenarios thanks to standard connections for professional equipment, including 3G-SDI OUT, TC IN/OUT, GENLOCK IN, HDMI Type A, LAN, USB Type-C, φ3.5 MIC, and headphones. LAN is PoE+ compliant for power supply, allowing video transmission, control, and power supply over a single LAN cable, significantly reducing wiring complexity in the field.

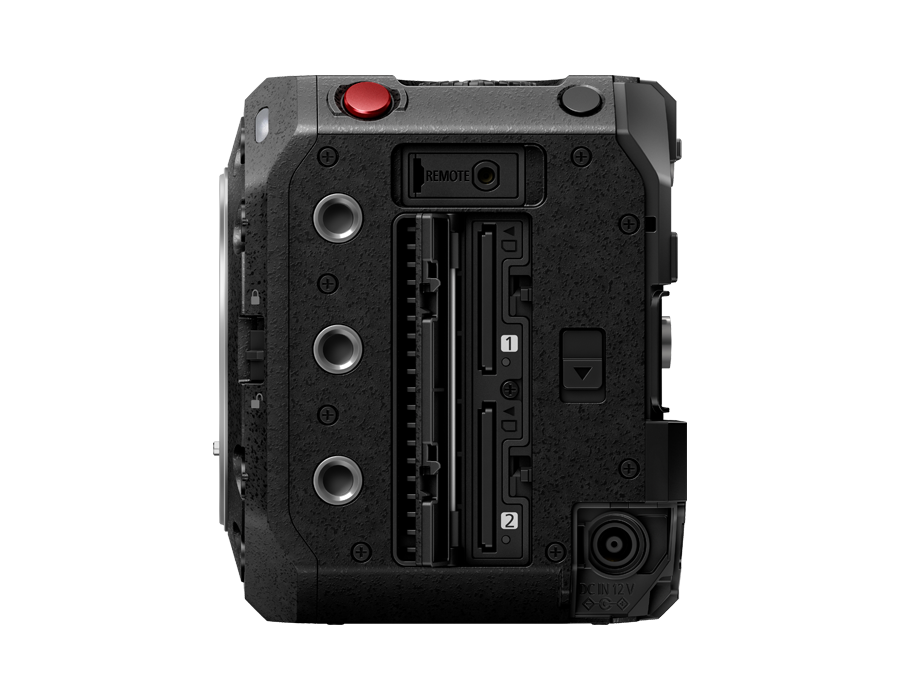

Two SD Card Slots
The two built-in SD card slots support data management with the best recording method, either sequential (relay) recording or backup recording, depending on the shooting environment and conditions.
Supports a wide range of shooting styles with flexible expandability
The minimal body, designed specifically for video production, features a wide variety of I/O interfaces, making the camera versatile for diverse applications including multi-camera setups, streaming, and traditional production styles using tripods and gimbals.
Specifications
Power Requirements
When using Lithium-ion battery pack: 7.28 V
When using included AC adapter: 12 V/3 A
Power Consumption
when recording: 8.1 W (When the interchangeable lens S-R24105 is attached)
when playing back: 6.9 W (When the interchangeable lens S-R24105 is attached)
Operating Temperature
-10 °C to 40 °C (14 °F to 104 °F)
Operating Humidity
10 % to 80 %
Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
Weight
Approx. 585 g / 1.29 lb (Body only)
