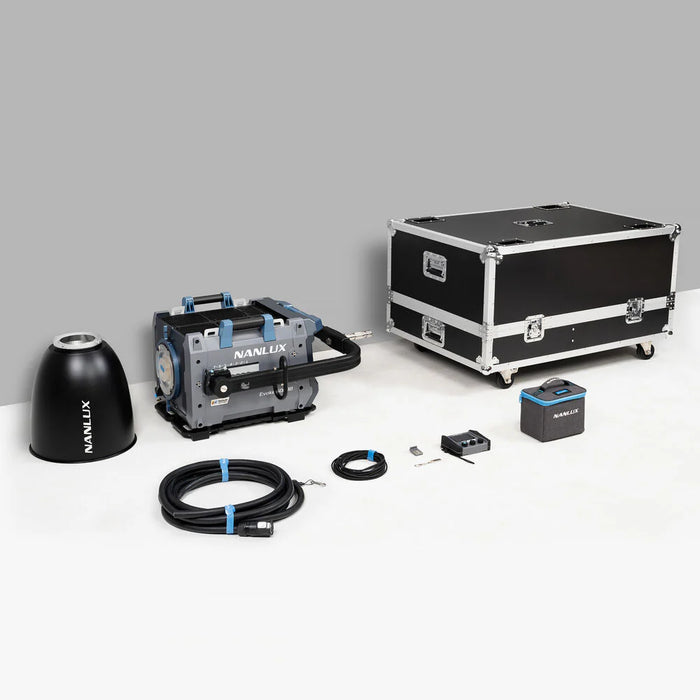

NANLUX Evoke 5000B LED Bi-color Spot Light with Flight Case
Hurry! Only 1 left in stock.
Revolutionary Light Engine , Remarkable Output
The Evoke 5000B is equipped with Nebula B4 Light Engine that developed by Nanlux. This light engine not only ensures the white light efficiency, but also provides a color temperature range of 2700K-6500K and ±80 Green/Magenta adjustment. With an ultra-high input power of 5000W*, it is the first bi-color light fixture at this power level that can adjust both color temperature and green/magenta values. It is now quick and easy to match other light sources on-set or achieve a specific look. This makes the Evoke 5000B the ideal alternative for traditional fixtures that rely on gels and repeated adjustments, being far more accurate and far less time-consuming. The built-in professional CSP chips and ultra-high LED light efficiency enable the Evoke 5000B to produce extraordinary illuminance, approaching that of a 9kW HMI or 24kW tungsten light.

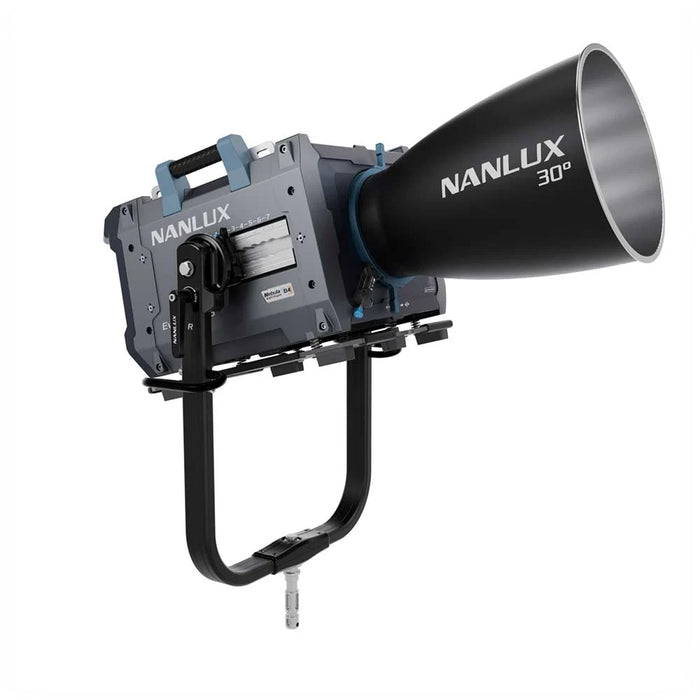

Output: 57,000 lux@5M 5600K, with 30° reflector
CCT Range: 2700K-6500K
G/M Adjustment: ±80
* 5000W (200V-240V countries/regions) / 5200W (100V-125V countries/regions)
Excellent Lighting Performance
The Evoke 5000B adopts a unique 95° beam angle, making it suitable for lighting large areas even without a modifier. With this beam angle and emitting area, the light quality and shadows closely mimic sunlight, making it an ideal solution for simulating natural light.
All-in-One Design · Compact · Weatherproof
The Evoke 5000B integrates the lamp head, control unit, and power supply into one fixture, significantly reducing both the total weight and size compared to a solution with separate units. With its all-in-one lamp and just one cable, fixture management is simpler and more organized, improving efficiency for both on-set and transportation.
To reduce weight and increase durability, the Evoke 5000B is constructed using high-strength magnesium alloy. It weighs only 45kg/99lb (with yoke), a remarkably light weight for the output.
The Evoke 5000B is constructed with an IP66-rated housing, enabling it to withstand extreme weather conditions and allowing production to continue unaffected in harsh conditions.
Comprehensive Controls, Ideal for Sets
The Evoke 5000B is designed with built-in control, ensuring the timely response of control signals. A new wired controller is included with the fixture, which provides stable wired control when the fixture is rigged high.
The availability of DMX/RDM, Art-Net/sACN, and LumenRadio CRMX control options allows the Evoke 5000B to operate smoothly in professional film and television production sets, enabling simultaneous control of multiple fixtures.
On-board Control

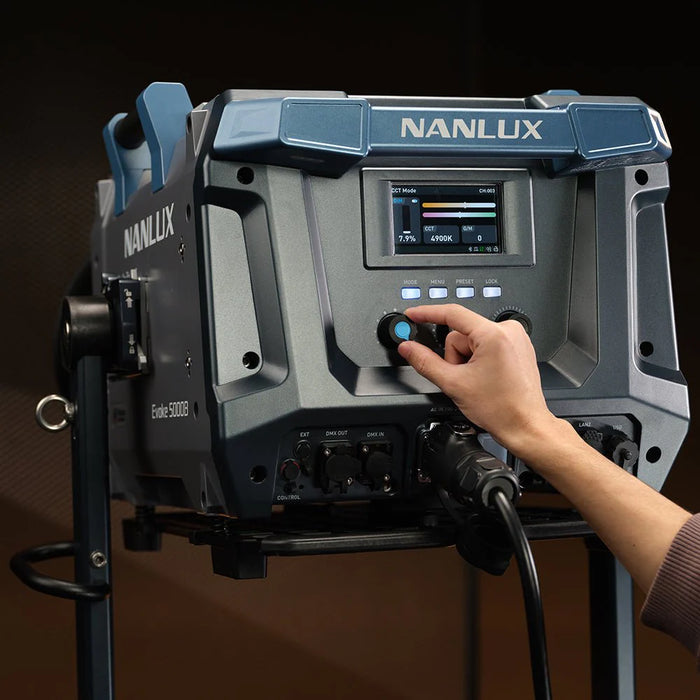

The control panel is equipped with three knobs, four buttons, and a 4.3-inch display screen for intuitive and quick control. The new-generation user interface provides users with a straightforward menu and user-friendly icons, allowing them to quickly locate the needed options and adjust parameters.
Wired Controller
The Evoke 5000B is equipped with an extension port, ensuring compatibility with the new IP66-rated wired controller (WC-EXT). This extension port enables connections between the fixture, the motorized yoke (YK-E-EVL), and other accessories, allowing for simultaneous control of all connected devices. Additionally, the fixture retains a wired control port, allowing compatibility with the existing wired controller* (WC-LM6P-C1).
DMX/RDM Control
The fixture has two 5-pin XLR DMX in and out ports forDMX/RDM signal transmission, ensuring a stable connection for group control.
Art-Net/sACN
The fixture is equipped with two LAN ports, supporting Art-Net/sACN protocol control over Ethernet, ensuring stable signal transmission and enabling long-distance control of multiple fixtures.
LumenRadio CRMX
The Evoke 5000B has a built-in LumenRadio TimoTwo module, allowing it to connect to the CRMX control ecosystem and providing flexible and stable wireless DMX control.

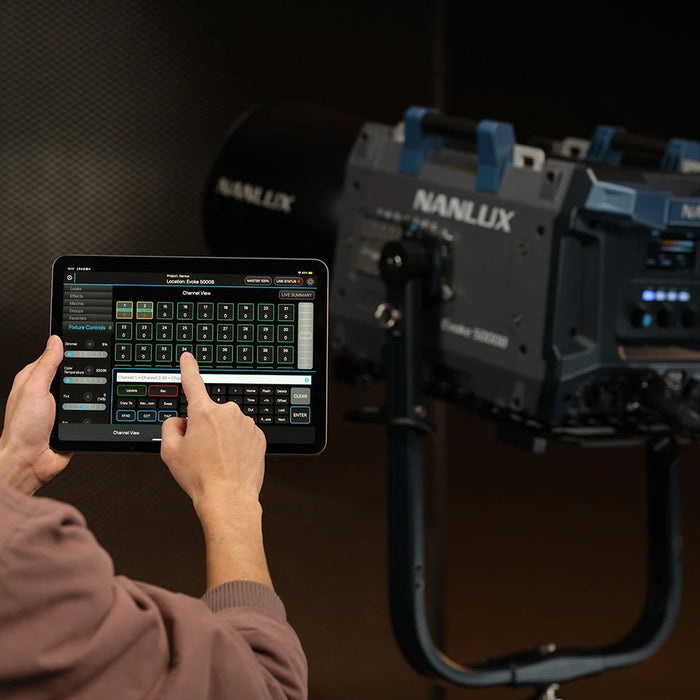

NANLINK APP 2.0
The Evoke 5000B can be controlled by the Nanlink App 2.0 through its built-in Bluetooth module, making efficient, flexible and simple wireless control possible.

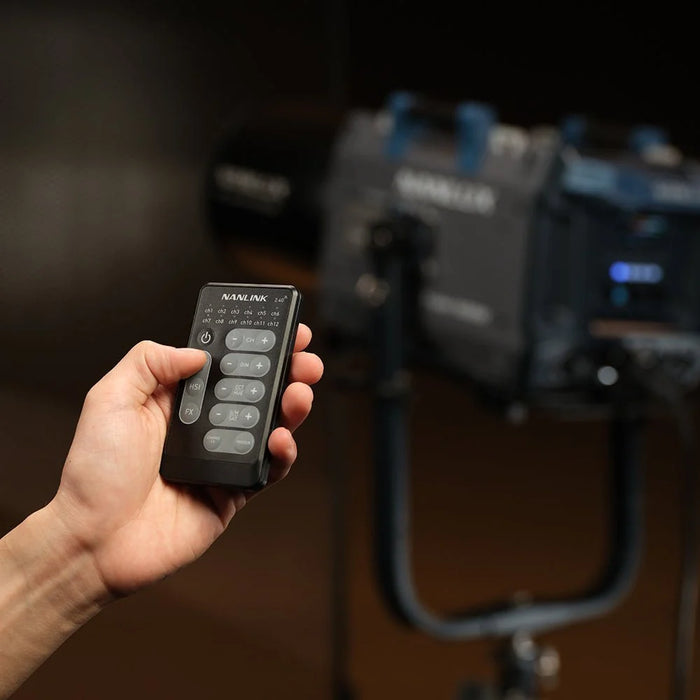

Remote Controller
The Evoke 5000B can also be controlled by a remote controller (optional purchase) through its built-in 2.4G module for quick parameter adjustments.
Optimized Cooling Management
A fixture with breakthrough output will face a bigger challenge for heat dissipation. The Evoke 5000B is equipped with a newly designed cooling system, including optimized heat sinks and fan modules, which improve heat dissipation efficiency.
This cooling system includes Smart, Full Speed, Low Speed and Off modes, allowing users to switch between them based on their needs. The Smart mode automatically adjusts the fan speed according to the ambient temperature. In this mode, the noise level is only 44 dB(A), ensuring a silent recording environment.
