Miller #4027 Compass Versa CXV+2 Solo-Q 75 CF (2-stage) Tripod System
Out of Stock – Please email us for an accurate lead time.
Description

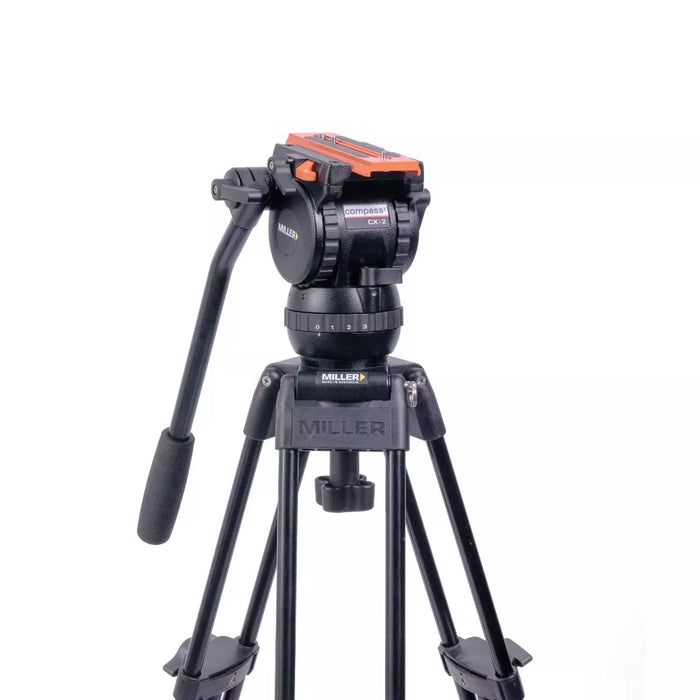

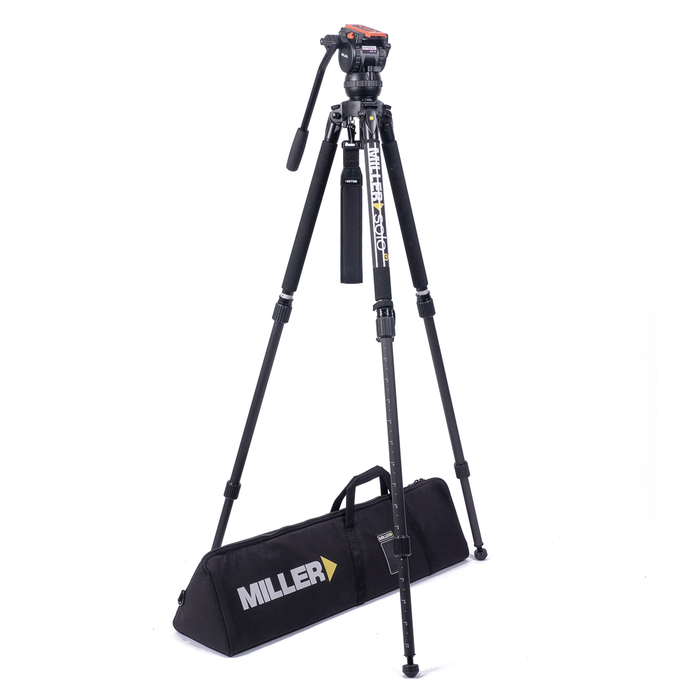

The 4027 Versa CXV2 Solo-Q 75 2-stage (carbon fibre) system consists of the Versa CXV2 fluid head and the ultra-light yet rigid 2500 Solo-Q 75 2-Stage Carbon Fibre Tripod. The system is designed to suit payload capacities from 0 to 8kg. Featuring concentric self-adjusting leg locks, Q Lock and light high strength telescopic tubing.
The Versa CXV2 employs CB Plus™ technology providing 16 positions of counterbalance and, with 3+0 settings of Miller’s unrivalled fluid drag coupled with 100mm of camera plate travel, you can easily select the perfect set-up to match your configuration for ultimate camera control.
The Versa CXV2 Solo-Q 75 2-stage (carbon fibre) tripod that results in a working height range of 412-1800mm (16.2-70.8”), offering rapid action twist locks on independent stages and the versatility of Q-Lock to set up the system across all terrains.
Specifications
Camera Platform
Quick release
Components

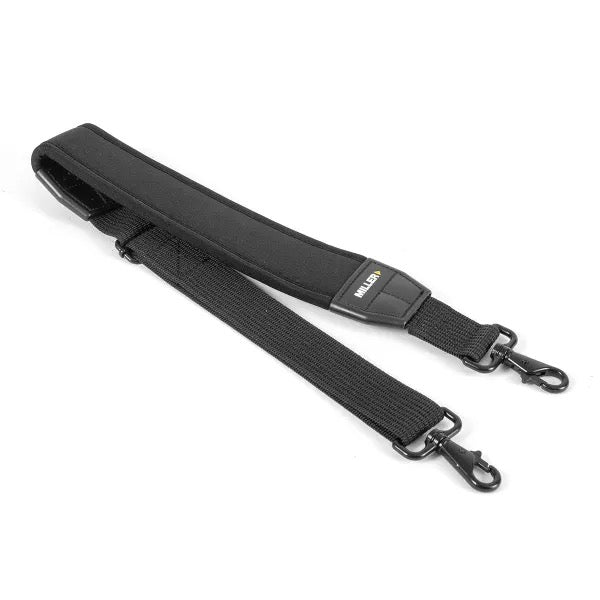

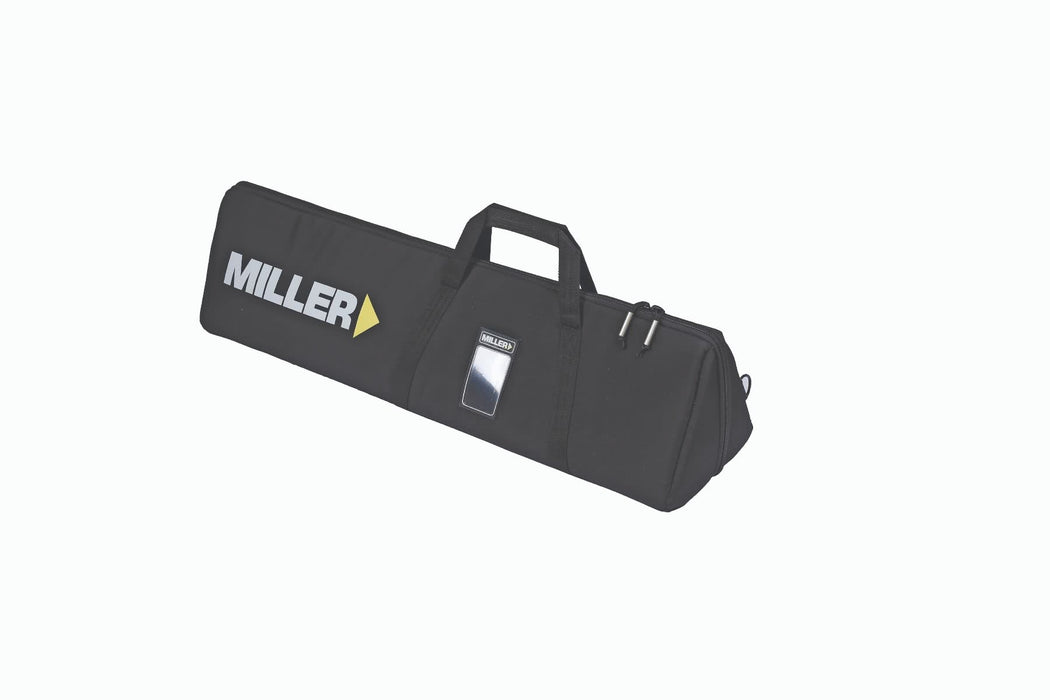

1135: Versa CXV2 fluid head, 2500: Solo-Q 75 2-stage tripod (carbon fibre), 679: Pan handle – fixed with clamp, 1520: Solo shoulder strap (Aircell), 3514: Softcase 2-stage
Counterbalance Positions
16 selectable positions (15+0)
Height Above Bowl
176mm (6.9")
Height Range
412-1800mm (16.2-70.9")
Illuminated Controls
Bubble Level
Leg Extension
2-stage telescopic
Leg Material
Carbon fibre
Lock Type
Concentric Rapid Lock & Q-Lock
Mounting Base
Ø75mm (2.9") ball levelling
Pan Handle
Fixed length 390mm (15.4")
Pan Range
360°
Pan Tilt Drag
3 selectable fluid drag positions + 0
Pan Tilt Locks
Positive lock caliper brake system
Payload Range
0-8kg (0-17.6lbs)
Sliding Range
100mm (3.93")
Temperature Range
-40° to +65°C (-40° to +150°F)
Tilt Range
+ 90°/ -75°
Transport Length
864mm (34”)
Weight
5.5kg (12.1lbs)
