DJI SDR Transmission 2 Transceiver
Out of Stock – Please email us for an accurate lead time.
Description
A single transmitter feeds up to eight receivers, each with remote control. Up to five transmitters and 40 receivers can operate simultaneously. Even in complex on-set environments, the wireless camera feed stays stable without sacrificing 4K image quality.

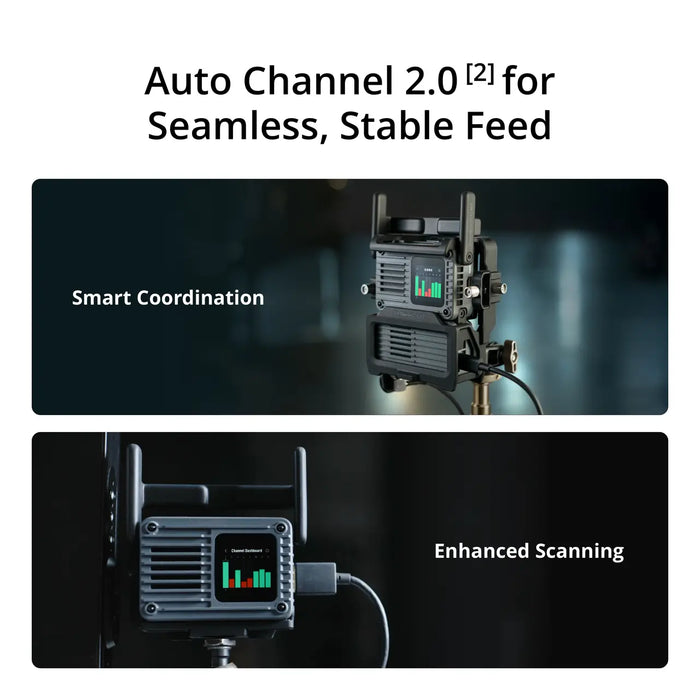

Auto Channel 2.0 for Seamless, Stable Feed
With Auto Mode enabled, transceivers recognize one another and intelligently coordinate frequencies. More accurate spectrum scanning and conflict diagnostics allow each unit to hop frequencies seamlessly as conditions change, maintaining a stable connection despite interference, even with multiple systems running side by side.

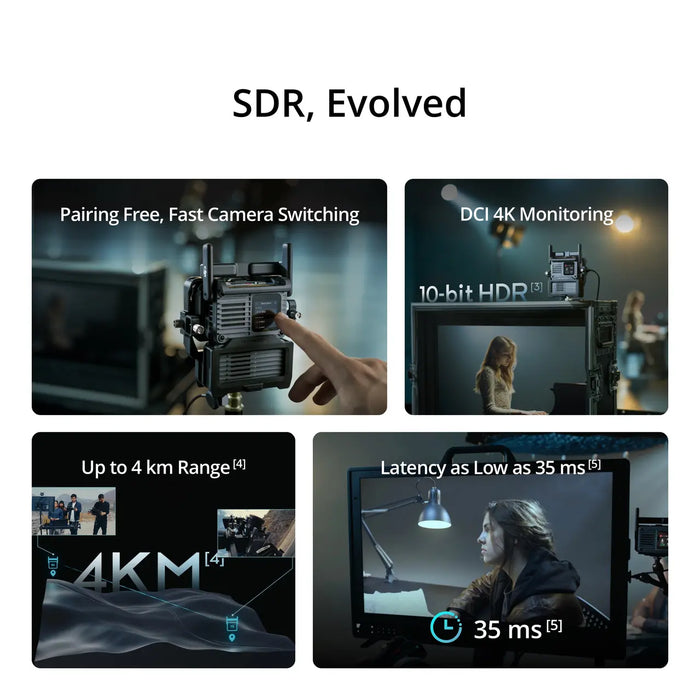

SDR, Evolved
It transmits DCI 4K/60fps, 10-bit HDR, and H.265 video at bitrates up to 50 Mbps for ultra-high-definition monitoring. The transmission range reaches up to 4 km, easily handling everything from stadiums to dynamic car shoots. With latency as low as 35 ms, the video feed is near-instant, making remote commands like focus pulls and gimbal moves highly responsive.

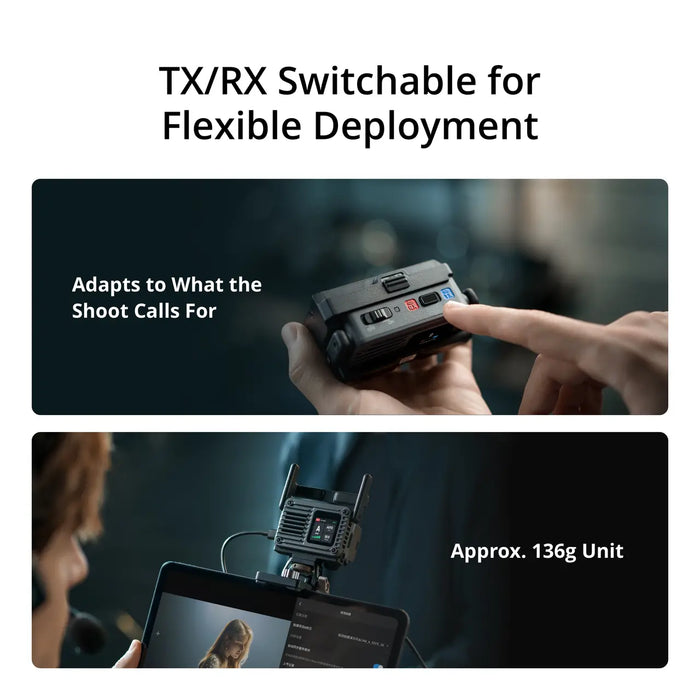

TX/RX Switchable
The transceiver design lets you switch between TX and RX on the fly. There is no need to decide your TX-to-RX ratio in advance, so every unit adapts to whatever the shoot calls for. Weighing only about 136 g, the unit reduces the load on handheld gimbals and mounts easily across a wide range of camera setups. It also provides 1 HDMI and 2 USB-C ports.
Pro Monitoring, Flexible Output
Quickly switch between camera feeds directly from the transceiver or the DJI Ronin app. Output the ultra-high-definition, low-latency video feed to pro monitors via SDI, HDMI, or DP ports. You can also connect a smartphone or tablet to the receiver via USB-C for a stable, high-bitrate wired monitoring feed.

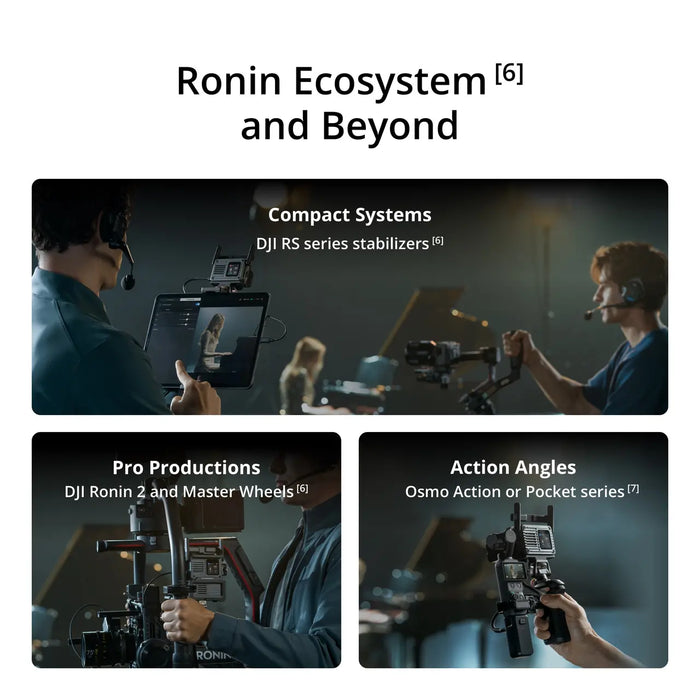

Ronin Ecosystem and Beyond
When paired with DJI RS series gimbals, you can wirelessly control gimbal movements and trigger recording with your smartphone. Connect to DJI Ronin 2 and Master Wheels to precisely control heavy cinema cameras on car mounts or crane rigs. Or, link an Osmo Action or Pocket series device for a lightweight setup to capture sports and other unique angles.

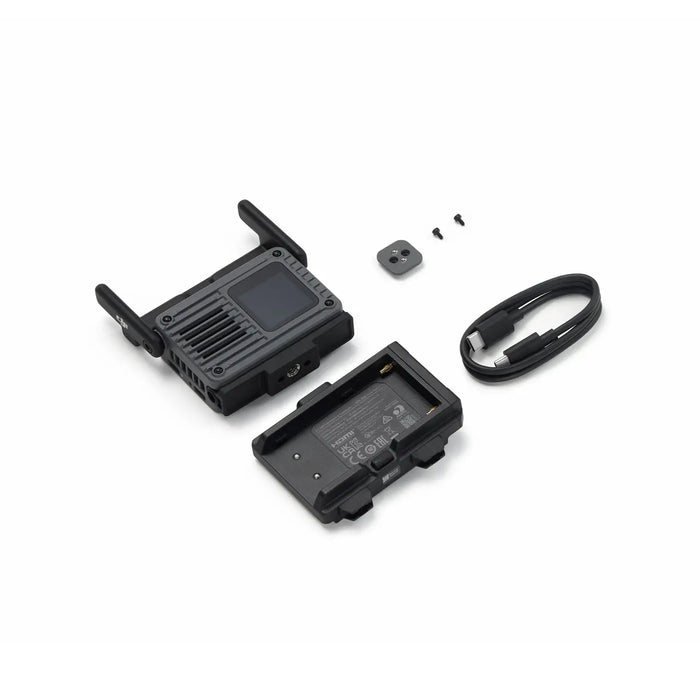

In the Box
-1x DJI SDR Transmission 2 Transceiver
-1x DJI SDR Transmission 2 Camera Cold Shoe Adapter
-1x DJI SDR Transmission 2 NP-F Battery Adapter
-1x Firmware Update Cable (USB-C to USB-C, 50 cm)
