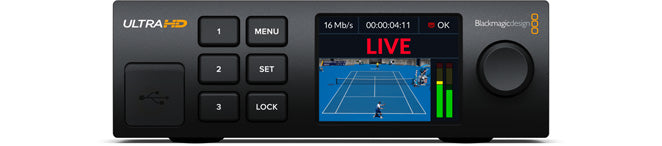

Blackmagic Streaming Decoder 4K
Out of Stock – Please email us for an accurate lead time.
Description
Blackmagic Streaming Decoder 4K is a professional streaming decoder that lets you receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it back to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that lets you connect SDI tally, camera control and talkback back to the encoder.

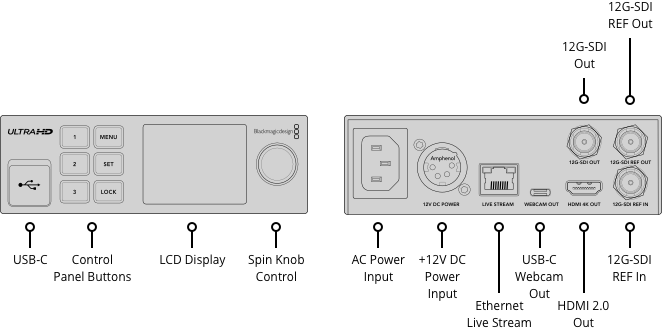

Connections
SDI Reference Inputs
1
SDI Video Outputs
1
SDI Reference Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G
HDMI 2.0 Video Outputs
1
Live Stream Audio Inputs / Outputs
2 channels embedded Live Stream audio on output.
2 channels embedded Program audio on input.
2 channels embedded talkback audio on input.
SDI Audio Inputs
16 channels embedded audio on 12G-SDI Ref In.
SDI Audio Outputs
16 channels embedded audio on 12G-SDI Ref Out.
2 channels embedded audio on 12G-SDI Out.
HDMI Audio Outputs
8 channels embedded audio on Monitor Out.
Webcam Outputs
1 x USB-C up to 2160p60
Ethernet
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates.
