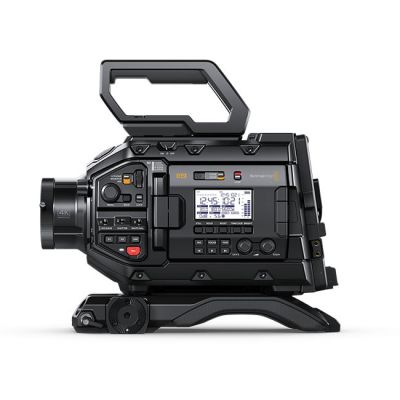

Blackmagic Design URSA Broadcast G2 6K Camera (B4 Mount)
Out of Stock – Please email us for an accurate lead time.
Description
The new Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera! You can record to common SD cards, UHS-II cards, CFast 2.0 cards or external USB disks, using common file formats such as H.265, ProRes and Blackmagic RAW. You can even change the lens mount! No other broadcast camera is so flexible!
3 Cameras In One!
Broadcast Production Camera
The perfect solution for broadcasters, URSA Broadcast G2 includes ENG camera controls positioned around the camera so you can locate them by feel. It also features a low light sensor so you get amazing images using natural light. That's the perfect combination for broadcast news and programming.
LiveStudio Camera
URSA Broadcast includes an advanced YRGB color corrector built in and full remote camera control. You can use B4 ENG lenses, large studio box lenses, or even change the lens mount and use any lens! Plus the optional Blackmagic focus and zoom demands let you control the lens from the tripod handles.
DigitalCinema Camera
URSA Broadcast G2 includes an advanced 6K digital film sensor, and you can change the lens mount! Use a PL mount for digital film lenses or EF for photo lenses. Plus the high dynamic range, great low light performance and Blackmagic RAW means you get a true "Hollywood" quality digital film camera.
Get Digital Film Quality for Broadcast
The large 6K sensor combined with Blackmagic generation 5 color science gives you the same imaging technology used in digital film cameras. This means broadcasters can now use digital cinema quality in broadcast! The 6K sensor features a resolution of 6144 x 3456 so it's flexible enough for broadcast and digital film work. When using B4 lenses, you get a 4K window of the sensor for Ultra HD broadcast use. Then if you change to a PL or EF lens mount, you can use the full 6K resolution of the sensor for digital film! With 13 stops of dynamic range, you get darker blacks and brighter whites, so it's perfect for color correction. Using digital film in broadcast is a revolution in image quality!
Exceptional Low Light Performance
The new URSA Broadcast features incredible low light performance so you can shoot using ambient light or even under moonlight! In advanced cameras, ISO is a measurement of the image sensor’s sensitivity to light. The Blackmagic URSA Broadcast G2 features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images, while maintaining the full dynamic range of the sensor. The primary native ISO is 400, which is ideal for use under studio lighting. Then the secondary high base ISO of 3200 is perfect when shooting in dimly lit environments. The gain can be set via a camera switch, the LCD menu or remotely using the SDI remote camera control protocol.

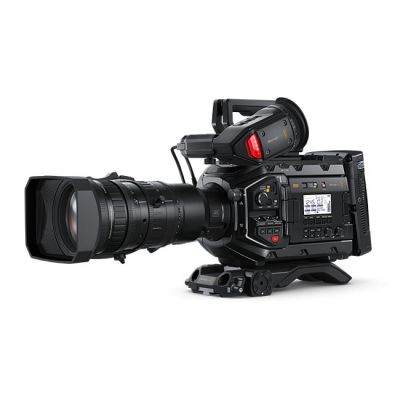

Compatible with B4 Broadcast Lenses
The URSA Broadcast G2 features a B4 broadcast lens mount that includes optics specifically designed to match the camera’s sensor. The B4 lens mount lets you use modern Ultra HD lenses or lower cost HD lenses. Older HD lenses often feature resolutions well beyond HD, so you get great quality at low cost! B4 lenses are fantastic because they are par-focal, so the image stays in focus as you zoom in and out, so you don't need to constantly chase focus as you shoot. That lets you work much faster! You also get full electronic lens control to adjust focus, iris and zoom using the camera’s controls, or remotely! Plus if you want to use alternative lenses, you can change the mount to PL, EF and more!
Built In Optical ND Filters
URSA Broadcast G2 features high quality neutral density (ND) filters that let you quickly reduce the amount of light entering the camera. The ¼, 1/16th and 1/64th stop filters have been specifically designed to match the image sensor and color science of URSA Broadcast G2, providing you with additional latitude and better colorimetry. This lets you use different combinations of aperture and shutter angle, in a wider range of situations. The IR filters have been designed to evenly filter both optical and IR wavelengths, eliminating IR contamination. Plus the filter status on the LCD can be displayed as a fraction, number, or stop reduction!
Use CommonMedia and File Formats!
URSA Broadcast is designed to work with standard file formats that are used by all broadcast systems and editing software. You can record in ProRes 422 HQ and ProRes 422 into QuickTime files. The new Blackmagic URSA Broadcast G2 model can even record into H.265 for incredibly small files at 60:1 to 285:1 compression ratios, in 10-bit broadcast quality. Plus you can record to Blackmagic RAW files, a revolutionary new format designed to capture and preserve the quality of the sensor data from the camera. That means you get the perfect range of file formats designed for all types of workflows.
Change to PL, EF and F Lens Mounts!
URSA Broadcast G2 features an interchangeable lens mount so you can easily swap the included B4 lens mount for an EF, PL or even F mount. URSA Broadcast G2 comes with a B4 mount already installed, plus a spare EF mount is included. That means if you’re starting out you can change the mount and use low cost photographic lenses. Photographic lenses are incredible quality because they're designed for high resolution photography. You can also purchase optional PL and F mounts separately. If you're shooting for digital film, the PL mount is best as it's the most common lens mount for cinema lenses. With URSA Broadcast G2, you get a single camera that works with virtually all modern lenses!
Latest Generation 5 Color Science
Featuring the same generation 5 color science as the high end URSA Mini Pro 12K, the new URSA Broadcast G2 delivers an even greater advancement in image quality with stunning, accurate skin tones and faithful color in every shot. You get a new dynamic 12-bit gamma curve designed to capture more color data in the highlights and shadows, for better looking images. The color science also handles some of the complex Blackmagic RAW image processing, so color and dynamic range data from the sensor is preserved via metadata which you can use in post production. That means you get images that have a natural, film like response to color adjustments in post with DaVinci Resolve Studio.
Camera Features
Effective Sensor Size
2/3 inch sensor size when using 4K B4 mount
(Actual sensor size 23.10mm x 12.99mm)
Lens Mount
B4 2/3 inch installed
Active EF mount also included
Lens Control
Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses.
Lens Correction
In-camera correction of color fringing when using compatible broadcast lenses.
Dynamic Range
13 Stops
Dual Native ISO
0dB and 18dB gain.
Sensitivity at 0dB Gain
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
additional 1.1 stop light loss using 4K B4 mount.
Signal to Noise Ratio
64.62dB for 2160p
Ultra HD scaled from 5.3K
Built in ND Filters
Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters.
Focus
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.
Screen Dimensions
4 inch
Screen Type
LCD capacitive touchscreen.
Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses.
ProRes Shooting Resolutionsand Frame Rates
3840 x 2160 (Ultra HD) up to 60 fps
from Ultra HD window or scaled from 5.3K windowed sensor
3840 x 2160 (Ultra HD) up to 50 fps
scaled from full sensor
1920 x 1080 (HD) up to 120 fps
scaled from 2.7K windowed sensor
1920 x 1080 (HD) up to 60 fps
scaled from Ultra HD or 5.3K windowed sensor
1920 x 1080 (HD) up to 50 fps
scaled from full sensor
H.265 Shooting Resolutions and Frame Rates
3840 x 2160 (Ultra HD) up to 60 fps
from Ultra HD window or scaled from 5.3K windowed sensor
3840 x 2160 (Ultra HD) up to 50 fps
scaled from full sensor
H.264 Shooting Resolutions and Frame Rates
1920 x 1080 (HD) up to 60 fps
scaled from Ultra HD or 5.3K windowed sensor
1920 x 1080 (HD) up to 50 fps
scaled from full sensor
Blackmagic RAW Shooting Resolutions and Frame Rates
6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5376 x 3024 (5.3K 16:9) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
1920 x 1080 (HD) up to 150 fps
Project Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps.
Off-speed frame rates up to 60p in Ultra HD and up to 150p in HD.
Metadata Support
Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours.
