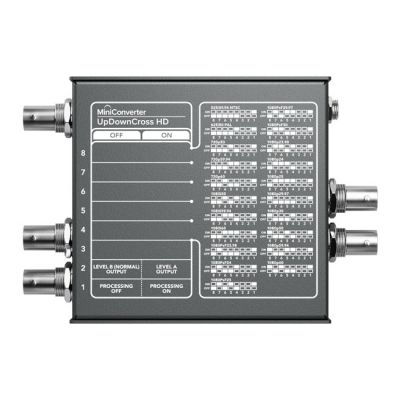

Blackmagic Design Mini Converter UpDownCross HD w/ SDI/HDMI Inputs & Outputs
Out of Stock – Please email us for an accurate lead time.
Description
Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format using high quality Teranex algorithms! Simply set the output format you need and the input format is automatically converted, protecting your equipment from receiving an incorrect signal. It’s also perfect for connecting HDMI computers to SDI projectors because it scales the computer’s video to the broadcast television output standard that you choose. Mini Converter UpDownCross HD features multi rate 3G-SDI connections for working in all formats up to 1080p60 including Level A and B devices plus computer resolution scaling via HDMI in. You also get an HDMI input, reference in, audio delay for perfect AV sync, timecode conversion and both 3G-SDI and HDMI inputs and outputs allowing you to connect to virtually anything!
Specifications
SDI Video Inputs
1 x SD, HD or 3G‑SDI Video Input and 1 x External Reference Input.
HDMI Video Input
1 x HDMI type A connector.
SDI Video Outputs
1 x loop out and 2 x outputs
HDMI Video Output
HDMI type A out. Output supports EDID of the monitor.
SDI Rates
270Mb, 1.5G, 3G.
Reference Input
Black burst and Tri‑Sync for SD & HD.
Multi Rate Support
Auto detection of HD or standard definition SDI inputs.
Updates and Configuration
USB
Reclocking
Yes
