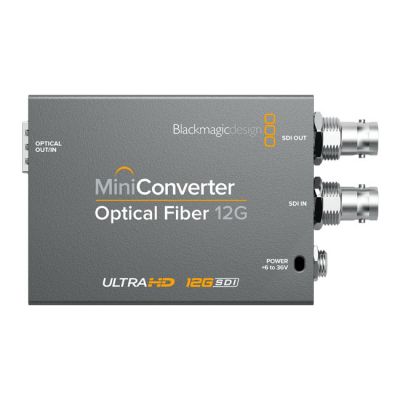

Blackmagic Design Mini Converter Optical Fiber 12G w/ 12V PSU
Out of Stock – Please email us for an accurate lead time.
Description
Now you can extend SDI massive distances up to 10 miles away! Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, so it’s like getting two converters in one. You can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. The fiber socket lets you install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks. Plus, the included international power supply has a locking connector so the power cannot be accidentally disconnected!
Specifications
SDI Video Inputs
1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
SDI Video Outputs
Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
Optical Fiber Connection (optional)
1 x SMPTE optical fiber SFP socket.
Optical fiber SFP module sold separately.
Optical Fiber Video Inputs
1 x 10 bit SD/HD/12G-SDI switchable.
Optical Fiber Video Outputs
Automatically matches the SD, HD and 12G-SDI video input.
Optical Fiber Audio Inputs
16 channel embedded.
Optical Fiber Audio Outputs
16 channel embedded.
Multi Rate Support
Auto detection of SD, HD or 12G-SDI.
Reclocking
Yes
