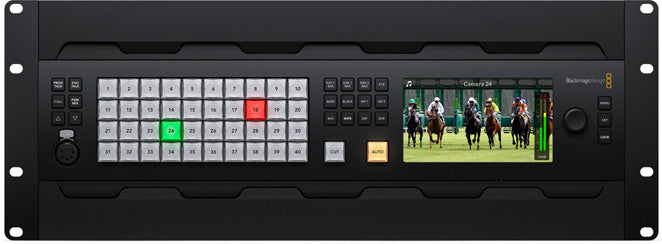

Blackmagic ATEM 4 M/E Constellation 4K Plus Switcher
Out of Stock – Please email us for an accurate lead time.
Description
ATEM 4 M/E Constellation 4K Plus is a massive 4 M/E Ultra HD live production switcher. It features 80 standards converted 12G-SDI inputs, 48 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multi-views, 2 SuperSource processors and more. You even get built in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics!
Connections
Total Video Inputs
80
Total Video Outputs
52
Total Aux Outputs
48
SDI Rates
1.5G, 3G, 6G, 12G.
Total Audio Inputs
2 x balanced 1/4 inch jack,
2 x 64 channel BNC MADI in,
1 x 5-pin XLR Talkback.
Total Audio Outputs
2 x balanced 1/4 inch jack,
4 x 64 channel BNC MADI out,
1 x 5-pin XLR Talkback.
Timecode Connections
1 x 3-pin XLR Timecode In,
1 x 3-pin XLR Timecode Out.
Reference Input
Tri-Sync or Black Burst.
Video Input Re-Sync
On all 80 inputs.
Frame Rate and Format Converters
On all 80 inputs.
SDI Video Inputs
80 x 10-bit 720p, 1080i, 1080p, 2160p.
SDI Audio Inputs
8 Ch embedded audio on all SDI inputs.
Extra Audio Inputs
1 x 5 pin XLR Talkback.
SDI Video Outputs
52 x 10-bit 720p, 1080i, 1080p, 2160p.
