Blackmagic 2110 IP SDI to HDMI 12G-10 Converter
Out of Stock – Please email us for an accurate lead time.
Description

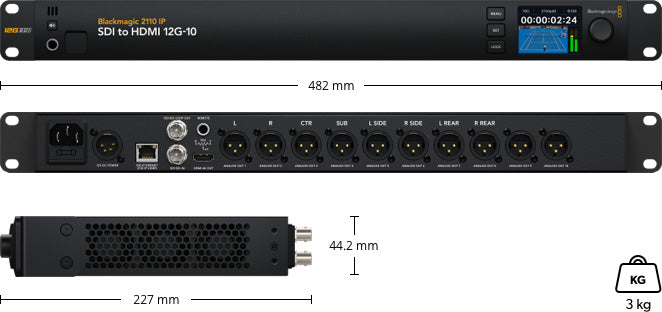

Blackmagic 2110 IP SDI to HDMI 12G-10 converts 12G‑SDI or SMPTE-2110 video to HDMI in a rack mount design. You get the highest quality conversion between all SD, HD and Ultra HD video standards with 3D LUTs for accurate calibration of HDMI displays. Blackmagic 2110 IP SDI to HDMI 12G-10 has 10 independent XLR audio outputs with remote level control and customizable delay for sync with TVs and projectors. Includes front panel LCD with video, meters and menus, speaker and headphone connector.
Connections
SDI Inputs
1
SDI Loop Outputs
1
SDI Rates
SD, 1.5G, 3G, 6G and 12G
HDMI 2.0 Video Outputs
1
SMPTE 2110 Input / Output
1 x 10G Ethernet
SMPTE ST 2110 IP Audio Inputs / Outputs
16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet.
SDI Audio Inputs
16 channels embedded audio.
SDI Audio Outputs
16 channels embedded audio.
HDMI Audio Inputs
8 channels embedded audio.
HDMI Audio Outputs
8 channels embedded audio.
Analog Audio Outputs
10 channels of professional balanced analog audio with 3‑pin XLR connectors.
1 x 6.35 mm headphone jack.
Webcam Outputs
1 x USB‑C up to 1080p60
Ethernet
Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration and software updates.
Computer Interface
USB‑C for webcam out, updates and configuration
