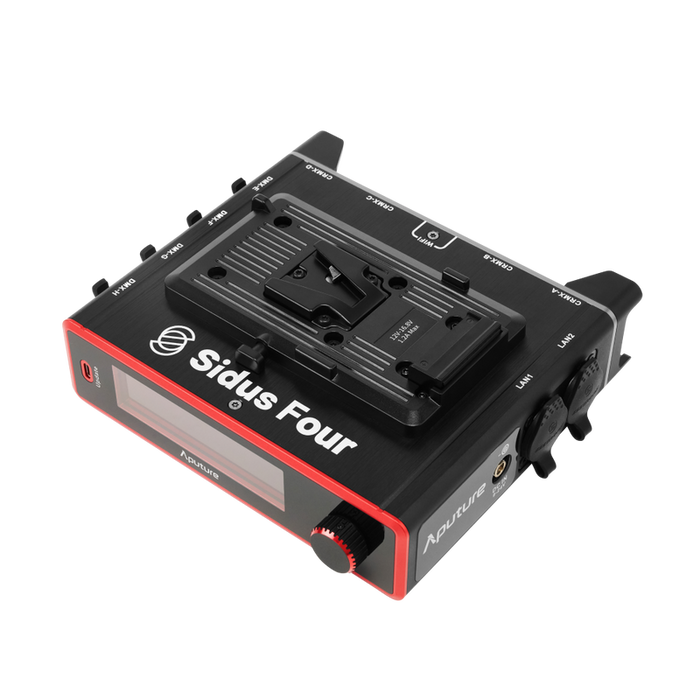

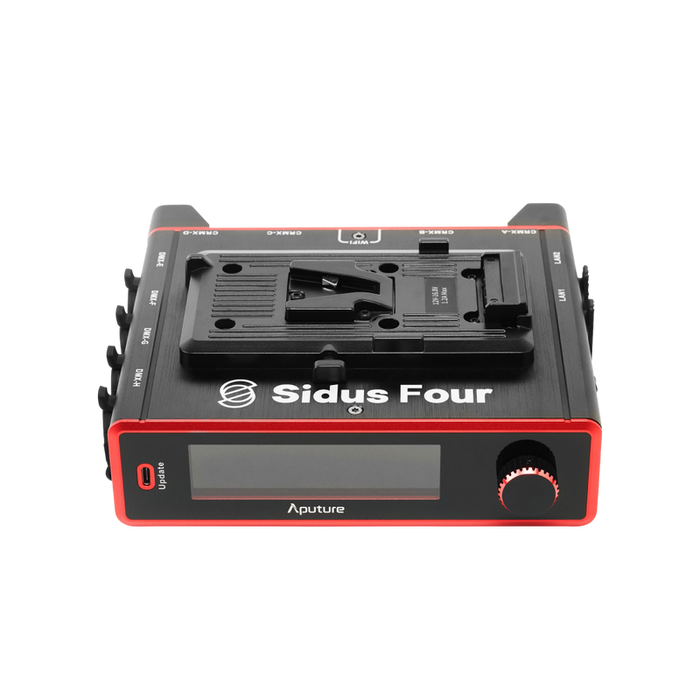

Aputure Sidus Four
Description
Four universe CRMX transmitter and DMX node with built-in wireless router
Control four wireless DMX universes across a vast array of protocols with this powerful, production-ready transmitter.
Universes of control
Sidus Four is an all-in-one lighting network device. Control four CRMX universes plus an additional four DMX universes with the built-in Ethernet node. Connect multiple Sidus Fours via the integrated Ethernet switch to expand your capabilities for big jobs.
Speak to your lights

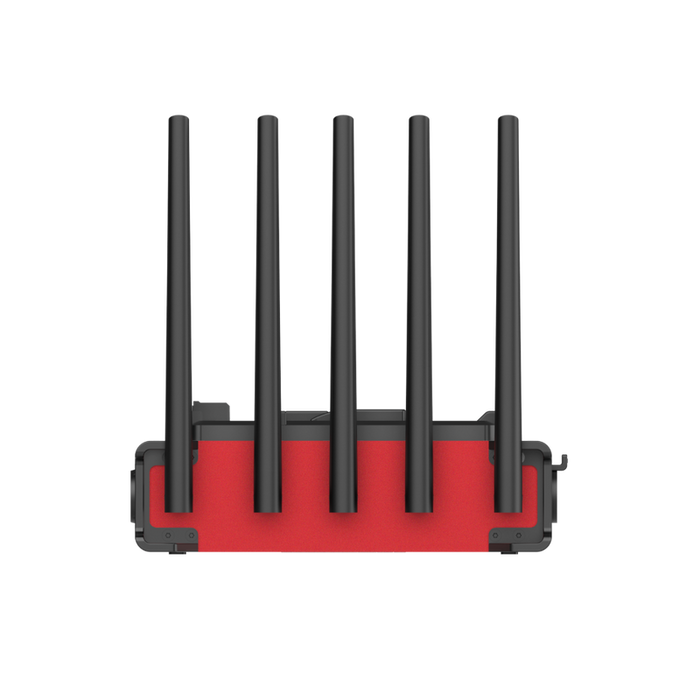

Sidus Four communicates over a wide range of control protocols: 5.8Ghz WiFi, 2.4 Ghz CRMX, DMX, Art-Net, sACN, and Sidus Bluetooth. Transmit up to 800m with the powerful five-antenna array.
Production ready

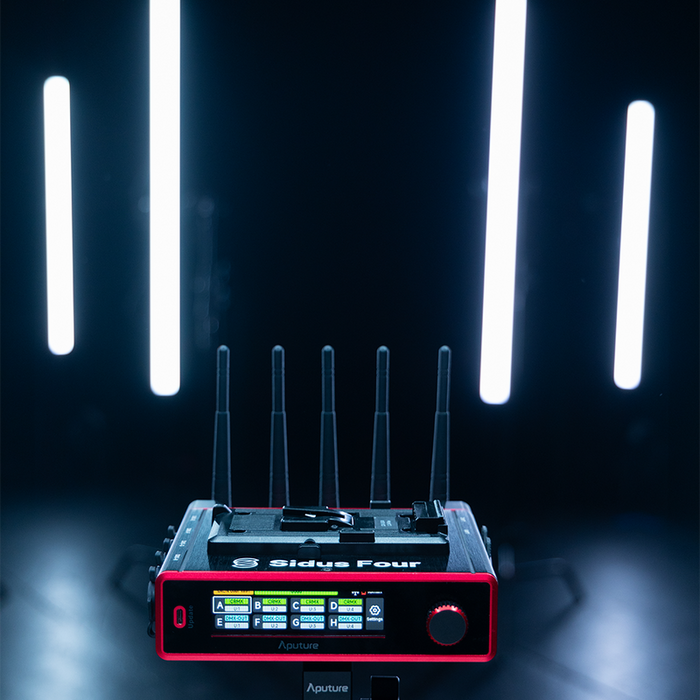

Easily check network vitals with the clear, color-coded display. Run off AC power or V-mount batteries, and maintain control with an 80-minute internal backup battery. Endure the weather with IP65 dust and water resistance.
Product Specifications
Connectivity: CRMX, DMX512, Art-Net & sACN via Ethernet and Wifi
Universe Support: 4 Wireless Universes & 4 Wired Universes

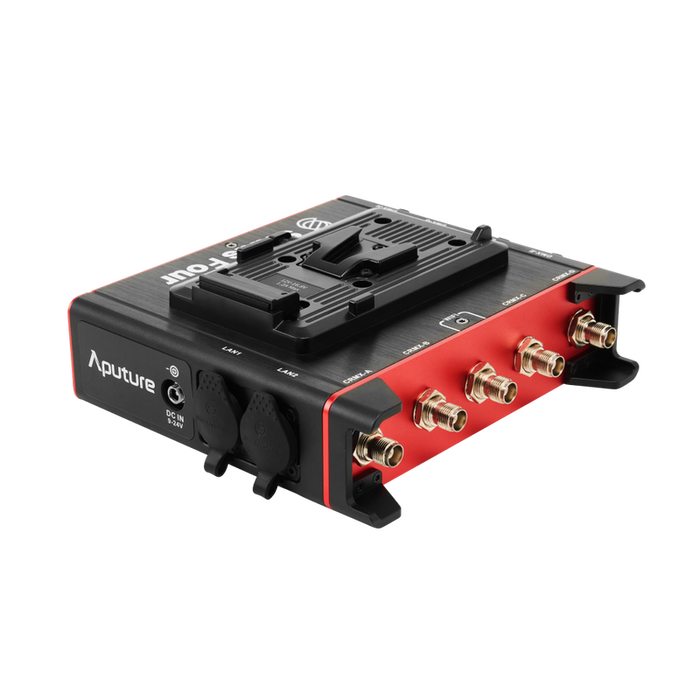

Ethernet Connectivity: 2x RJ45 Ports at 100Mbps Each

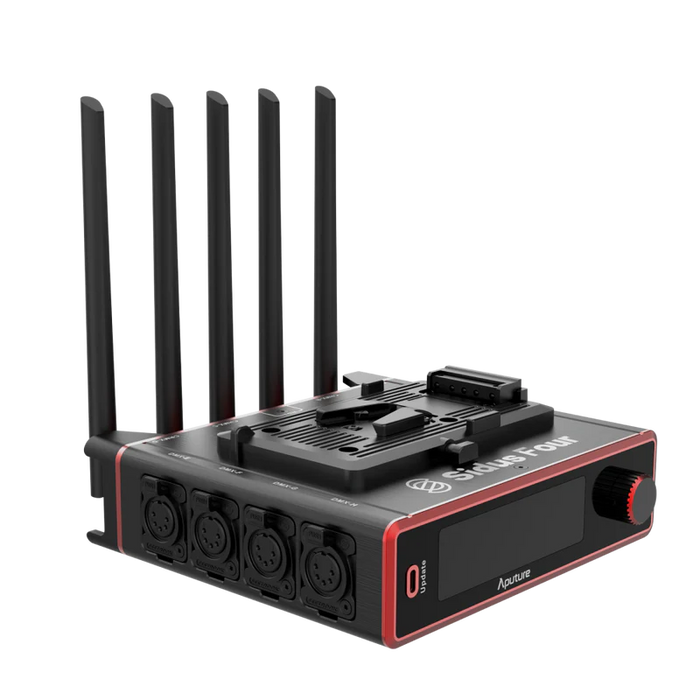

DMX Connectivity: 4x XLR 5-Pin DMX Bidirectional Female Ports
Wi-Fi Operating Frequency: 5 GHz at 150Mbps
CRMX / Sidus BT Operating Frequency: 2.4GHz
Bluetooth Wireless Range: ≤300m / ≤984ft
Wi-Fi Wireless Range: ≤800m / ≤2,625ft
CRMX Wireless Range: ≤800m / ≤2,625ft
Wi-Fi Modes: AP mode/STA mode
CRMX Mode: TX mode
AC Adapter Operating Voltage: AC In: 100-240V DCOut:9V/18W
DC Jack: 5.5/2.5mm DC Barrel Jack (9-24V) (3m)
V-Mount: V-Mount Battery Plate (12-16.8V)
Lithium Polymer Battery: 3.7V 1500mAH
Backup Battery Life: 80 min
Power Consumption: 17W Max, 6W Normal (W/O: Charging, Type-C Output)
Charge Time: 30 min
