Description

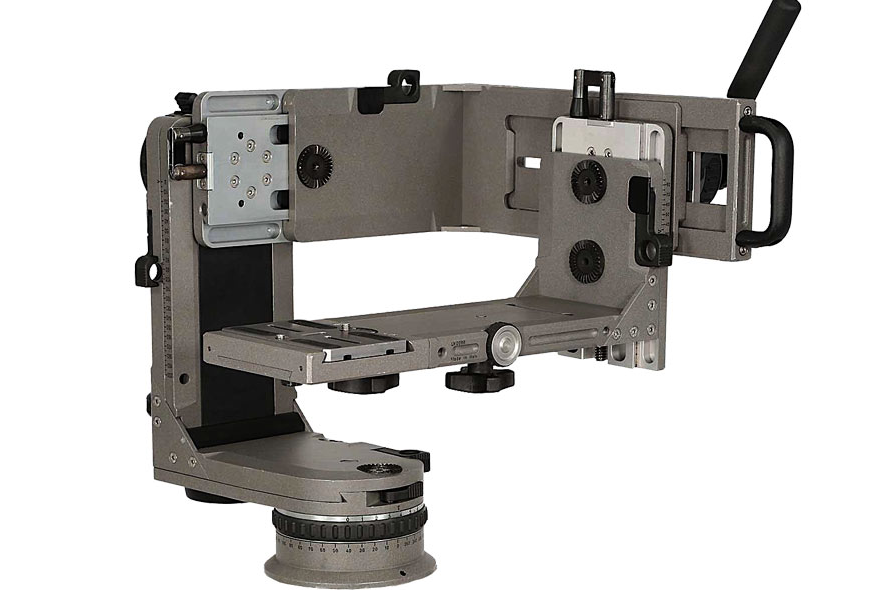

The 3rd Axis for Lambda 50 adds the roll axis to the classic nodal head.

• The Lambda 50 3rd Axis is mounted in replacement of the Lambda 50 camera stage, creating 3 independent rotation axis for pan, tilt and roll.
• The precision cranks adjusting the slide allow the nodal setting to be combines on all 3 axis.
• It includes an additional 7 steps + zero fluid drag unit and a rod with counterweight to compensate off-set positions.

Technical Data

Weight 15.5 kg / 34 lbs

Maximum Payload Capacity 40 kg / 88 lbs

Bowl Diameter Plate

Fluid Drag 7 steps + 0

Tilt Range 360°

Operational temperature -40°/+60° Celsius

In the Box

-Lambda 50 Third Axis

-Hand wheel

-Counter weight Lambda 50
