Aputure STORM 400x (V-Mount)
Out of Stock – Please email us for an accurate lead time.
Aputure STORM 400x (V-Mount) is available for rent.
STORM 400x
400W tunable white high fidelity point source lamp with ProLock Bowens mount
SKU: AP00339A20
BLAIR: The Best Tunable White Light
The Aputure STORM 400x utilizes the BLAIR (Blue/Lime/Amber/Indigo/Red) light engine, delivering the highest quality white light and greatest +/- green adjustability of any LED technology. The BLAIR light engine's indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.
The brightness of the STORM 400x matches or exceeds that of many higher wattage LED lights.
Color Tuning Control
The revolutionary BLAIR light engine can also output saturated colors across more than 70% of Rec.2020 color space using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle color effects without gels.
ProLock Locking Bowens Mount
The ProLock Locking Bowens mount holds modifiers and optics rigidly in place. On STORM lamps, even the heaviest modifiers stay secure and properly aligned
Compact Powerhouse
The STORM 400x is surprisingly bright, with output matching or exceeding many higher-powered COB lights. Pair with the CF7 Fresnel lens for a powerful combination capable of over 23,000 lux at 3m.
Professional Control Options
The STORM 400x features wireless control with Sidus Bluetooth Mesh, CRMX and 5-Pin DMX for use with professional lighting control software.
IP65 Weather Protection
Head-to-toe IP65 dust and weather protection means the STORM 400x can work in extreme environments. Seals on every connector and around components allow not only the lamphead but also the control box and cabling to be used outside in the rain.

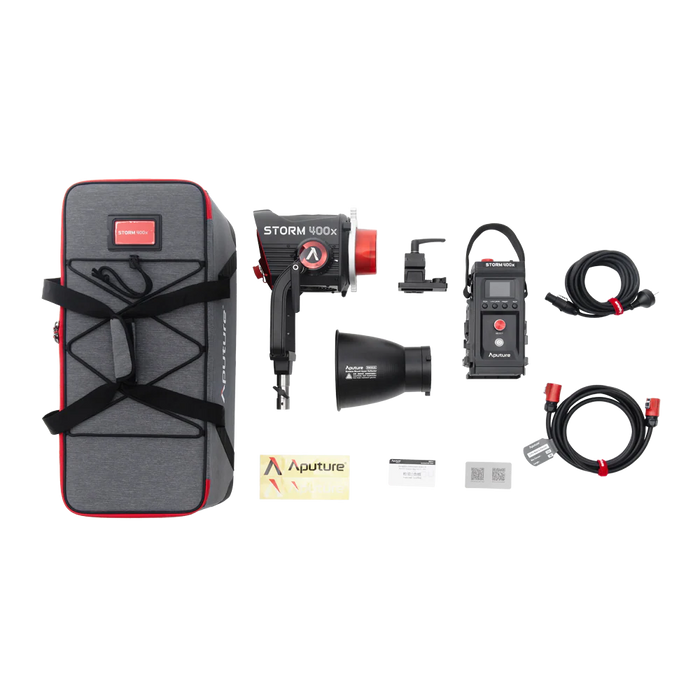

In the Box
1x STORM 400x Lamp Head
1x STORM 400x Control Box
1x Lightning Clamp
1x 35° Angle Hyper Reflector
1x STORM 400x Head Cable (3m)
1x AC Power Cable (6m)
1x Bowens Mount Protection Cover
1x Soft Carrying Case
STORM 400x Photometrics
| CCT | Dis. | No Reflector | 35º Reflector | CF7 Full Spot (15º) | CF7 Full Flood (40º) |
|---|---|---|---|---|---|
| 2,500K | 1m | 20,590 lux 1,913 fc | 49,200 lux 4,571 fc | 179,800 lux 16,703 fc | 40,600 lux 3,772 fc |
| 2,500K | 3m | 2,361 lux 219 fc | 3,850 lux 358 fc | 17,700 lux 1,644 fc | 4,780 lux 444 fc |
| 3,200K | 1m | 25,600 lux 2,378 fc | 61,600 lux 5,723 fc | 225,200 lux 20,921 fc | 51,000 lux 4,738 fc |
| 3,200K | 3m | 2,964 lux 275 fc | 4,850 lux 451 fc | 22,210 lux 2,063 fc | 6,020 lux 559 fc |
| 4,300K | 1m | 27,350 lux 2,541 fc | 65,400 lux 6,076 fc | 237,300 lux 22,045 fc | 53,900 lux 5,007 fc |
| 4,300K | 3m | 3,140 lux 292 fc | 5,120 lux 476 fc | 23,470 lux 2,180 fc | 6,400 lux 595 fc |
| 5,600K | 1m | 27,100 lux 2,518 fc | 64,600 lux 6,001 fc | 236,700 lux 21,989 fc | 53,900 lux 5,007 fc |
| 5,600K | 3m | 3,110 lux 289 fc | 5,090 lux 473 fc | 23,260 lux 2,161 fc | 6,380 lux 593 fc |
| 7,500K | 1m | 25,700 lux 2,388 fc | 61,600 lux 5,723 fc | 225,200 lux 20,921 fc | 51,500 lux 4,784 fc |
| 7,500K | 3m | 2,960 lux 275 fc | 4,840 lux 450 fc | 22,110 lux 2,054 fc | 6,100 lux 567 fc |
| 10,000K | 1m | 24,160 lux 2,244 fc | 57,800 lux 5,370 fc | 212,600 lux 19,751 fc | 48,500 lux 4,506 fc |
| 10,000K | 3m | 2,790 lux 259 fc | 4,550 lux 423 fc | 20,760 lux 1,929 fc | 5,740 lux 533 fc |
STORM 400x Specifications
CCT2,500K – 10,000K
Green-Magenta Adjustment Range±G 100% (Full ASC MITC Range)
CRI≥95
TLCI≥95
CQS≥94
SSI (Tungsten)87
SSI (D56)85
TM-30 RF (Average)95
TM-30 RG (Average)100
Max Power Consumption500W
Max Power Output400W
Operation Voltage100V ~ 240V / 50-60 Hz
USB-A Power Port SpecificationsOut 5V/0.5A
Battery Mount Operating Voltage14.4V
Weather Resistance RatingIP65
Native COB Beam Angle57º
Included Reflector Beam Angle35º
Data Ports1x 5-Pin DMX In, 1x 5-Pin DMX Out
Operating Temperature-20°C ~ 45°C / -4°F ~ 113°F
Storage Temperature-40°C ~ 80°C / -40°F ~ 176°F
Lamp Head Fan Noise Levels (1M) Smart Mode36 dBA
Lamp Head Fan Noise Levels (1M) High Mode33 dBA
Lamp Head Fan Noise Levels (1M) Medium Mode29 dBA
Lamp Head Fan Noise Levels (1M) Silent Mode0 dBA
Control Methods
Control MethodsOn-board, Sidus Link App, Sidus Link Pro App, DMX/RDM, CRMX
Firmware UpgradeableSidus Link, Sidus Link Pro, USB-A Drive
Wireless Range (Bluetooth & CRMX)≤100m / ≤262.5ft
Dimensions
Lamp Head (With Yoke)23.9 x 25.3 x 42.4cm
9.4 x 10.0 x 16.7in
Control Box13.6 x 14.1 x 24.3cm
5.4 x 5.6 x 9.6in
Weight
Lamp Head with Yoke3.95kg / 7.99lbs
Control Box3.00kg / 6.07lbs
Head Cable0.51kg / 1.03lbs
AC Power Cable0.59kg / 1.19lbs
35° Reflector0.25kg / 0.51lbs
Lightning Clamp0.65kg / 1.32lbs
