NANLUX FL-45E Motorized Fresnel Lens 16°-50° for Evoke 5000B
Out of Stock – Please email us for an accurate lead time.
Description

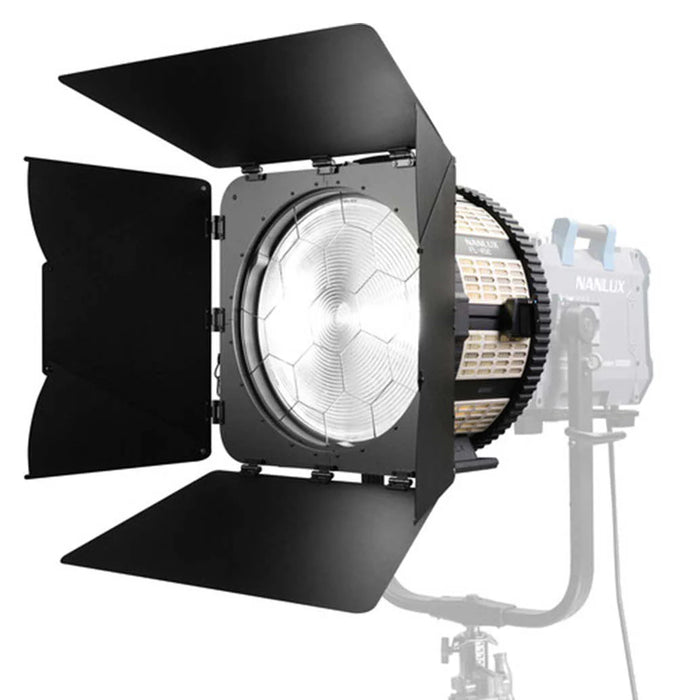

The Motorized Fresnel Lens FL-45E is compatible with NL mount light fixtures equipped with electronic contacts (e.g.Evoke 5000B). it features a 16°-50° zoom range, controllable through multiple methods, and offers lP66 protection.
The FL-45E features a 45cm lens with a 16°-50° zoom range. At 16°, it gives the Evoke 5000B an illuminance of 79,500 lux (@5m, 5600K), providing a smaller lighting area and a less hard appearance.
The zoom range of the FL-45E can be adjusted using the buttons on the Fresnel lens itself, controlled on the fixture, via wired control (wired controller, DMX Ethernet), or through wireless control (Nanlink App 2.0, LumenRadio CRMX). The built-in fans provide operational stability and reliability in high temperature environments.
Specifications:
- Compatible with: Evoke 5000B
- Beam Angle: 16°-50°
- IP Rating: IP66
Product Size:
FL-45E: 563x578x342mm/22.17x22.76x13.46

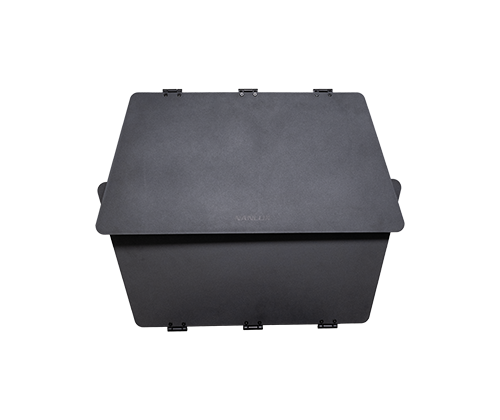

Barndoor: 693x553x43mm/27.28x21.77x1.69

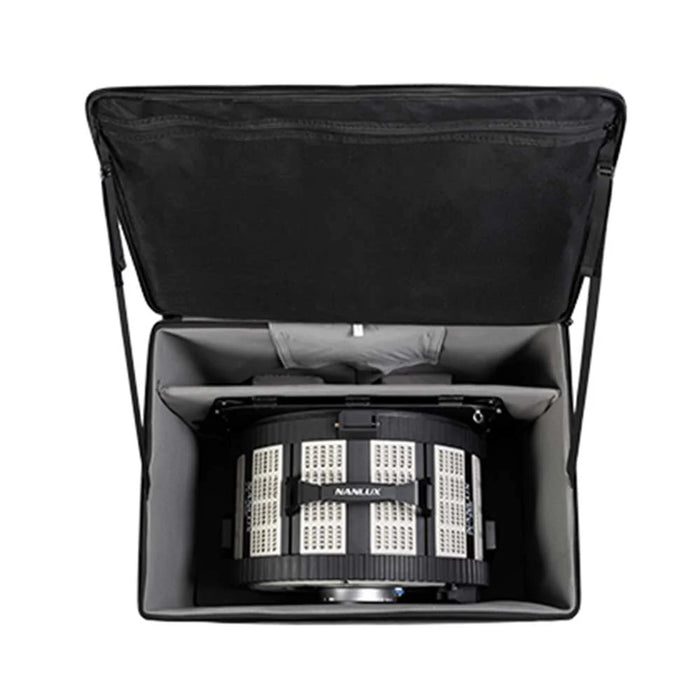

Trolley Case: 775x690x540mm/30.51x27.17x21.26'
Product Weight:
FL-45E: 13.75kg/30.311b
Barndoor: 3.04kg/6.70lb
Trolley Case: 16kg/35.27lb
Certifications: CE, UKCA, ROHS, IP66

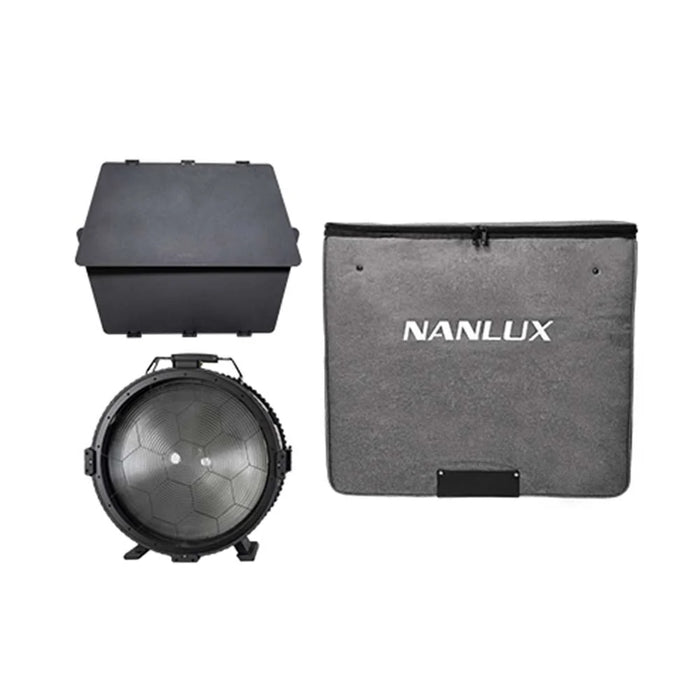

Includes: FL-45E x 1, Barndoor x 1, Trolley Case x 1, User Manual x 1
