Aputure Motorized CF16 Fresnel Rolling Case Kit
Out of Stock – Please email us for an accurate lead time.
Motorized CF16 Fresnel
16in motorized Aputure Mount fresnel for STORM XT52
SKU: AA07060370

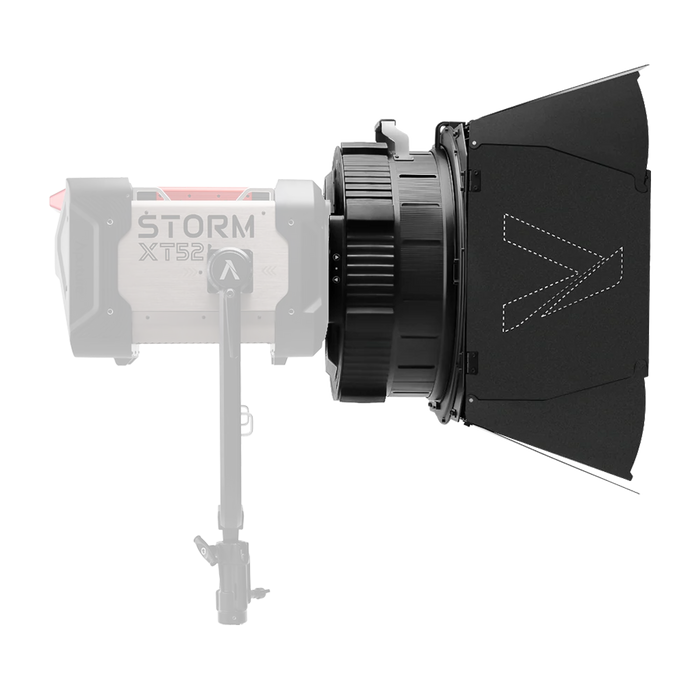

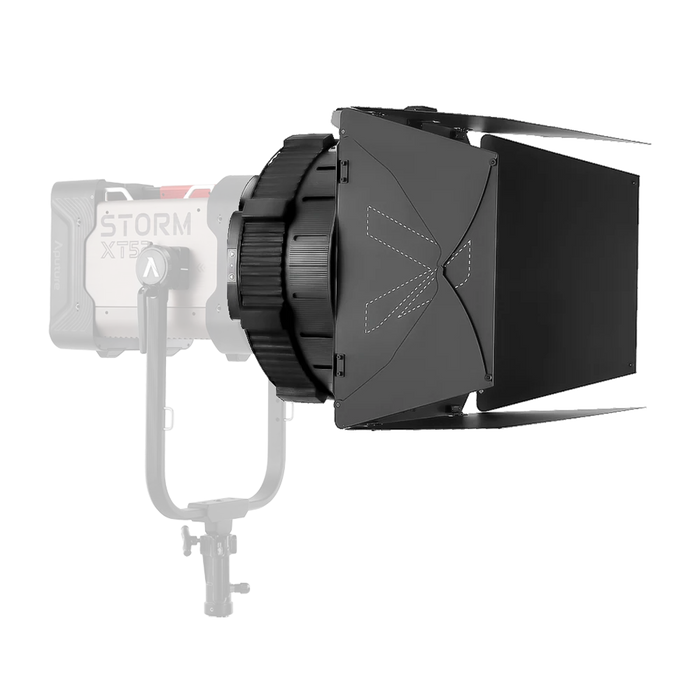

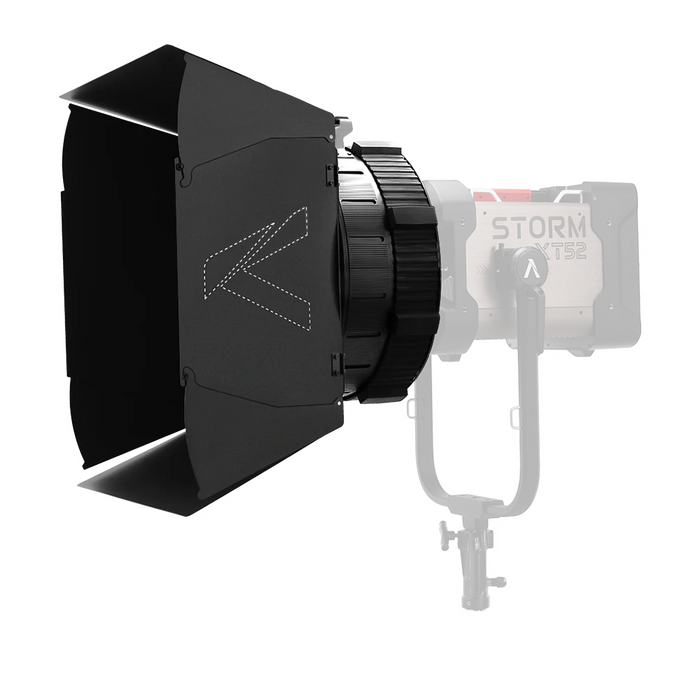

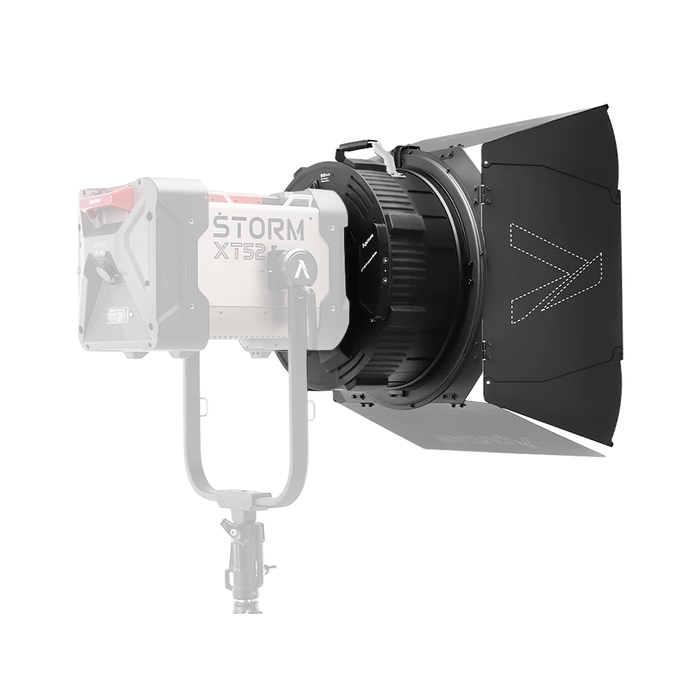

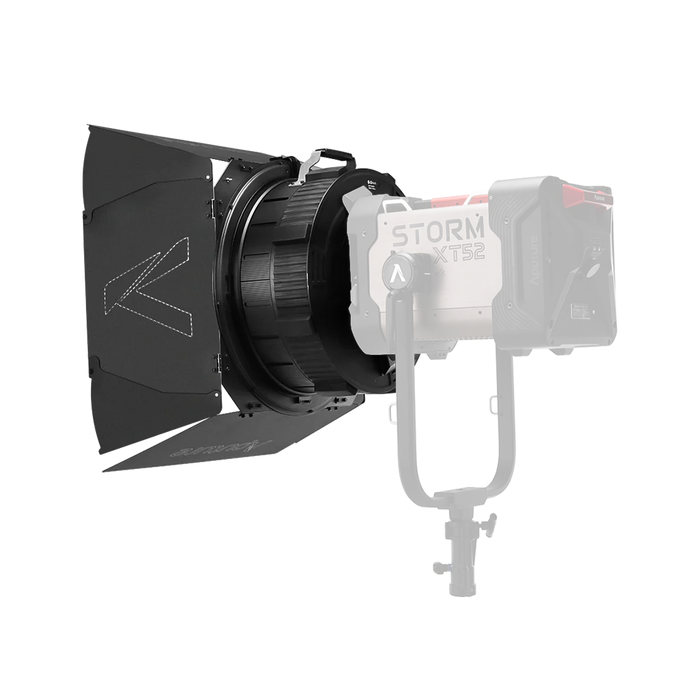

The CF16 Fresnel is a compact, motorized fresnel lens with a spot-flood range of 18º-50º. The CF16 Fresnel is designed for use with the STORM XT52 and can amplify the lamp's output by up to 7 times. The motorized dual-expanding focus system extends at both ends of the barrel, and is designed to mechanically reduce the total size and weight, while optically providing smooth beam falloff. Remote control is available through DMX, CRMX, Sidus Link, or Sidus Link Pro. The CF16 can be used in manual mode with the optional CF16 Fresnel Manual Focus Cover accessory.

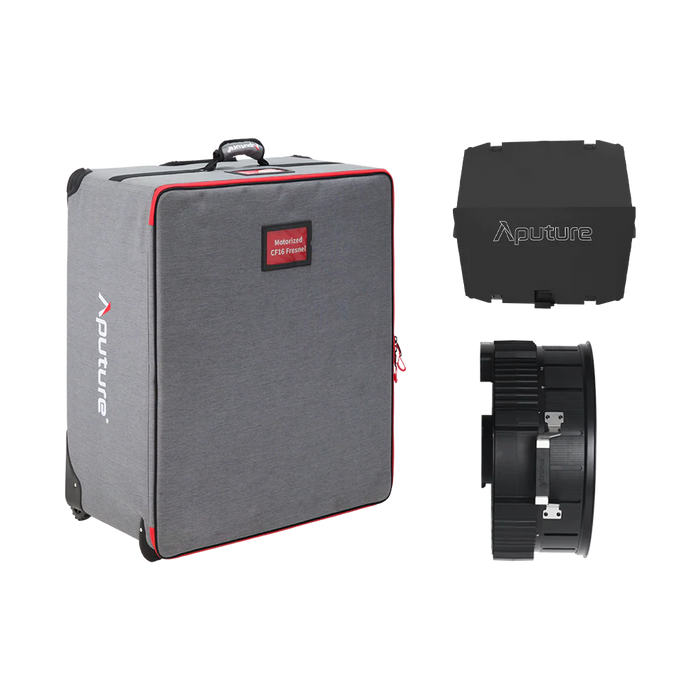

What's in the Box?
1x Motorized CF16 Fresnel
1x CF16 Fresnel Barn Doors
1x Safety Cable
1x Rolling Case
Motorized CF16 Fresnel Photometrics
| CCT | Dis. | XT52 @ 18º | XT52 @ 50º |
|---|---|---|---|
| 2,500K | 3m | 127,100 lux 11,804 fc | 23,280 lux 2,162 fc |
| 2,500K | 5m | 45,800 lux 4,254 fc | 8,380 lux 778 fc |
| 3,200K | 3m | 151,000 lux 14,025 fc | 26,760 lux 2,485 fc |
| 3,200K | 5m | 56,000 lux 5,202 fc | 26,760 lux 2,485 fc |
| 4,300K | 3m | 184,500 lux 17,135 fc | 33,900 lux 3,148 fc |
| 4,300K | 5m | 66,300 lux 6,157 fc | 12,230 lux 1,136 fc |
| 5,600K | 3m | 177,500 lux 16,484 fc | 31,700 lux 2,944 fc |
| 5,600K | 5m | 65,900 lux 6,120 fc | 12,170 lux 1,130 fc |
| 6,500K | 3m | 175,500 lux 16,298 fc | 32,400 lux 3,009 fc |
| 6,500K | 5m | 63,000 lux 5,850 fc | 11,680 lux 1,085 fc |
| 10,000K | 3m | 130,300 lux 12,100 fc | 24,150 lux 2,243 fc |
| 10,000K | 5m | 46,700 lux 4,337 fc | 8,690 lux 807 fc |
Motorized CF16 Fresnel Specifications
Optical Specifications
Beam Angle Full Spot18º
Beam Angle Full Flood50º
Focus Motor Throw Duration12 seconds
Environmental Specifications
IP RatingIP65
Dimensions
CF16 Fresnel 56.4 x 51.9 x 23.4cm , 22.2 x 20.4 x 9.2in
Rolling Case 83.0 x74.0 x 48.0cm , 32.7 x 29.1 x 18.9in
Weight
CF16 Fresnel 11.80kg / 26.01lbs
Rolling Case 17.20kg / 37.92lbs
