Ignite Digi FUSION HUB for DJI Transmission (Ronin Pack w/ Nano II Breakout)
Out of Stock – Please email us for an accurate lead time.
Description

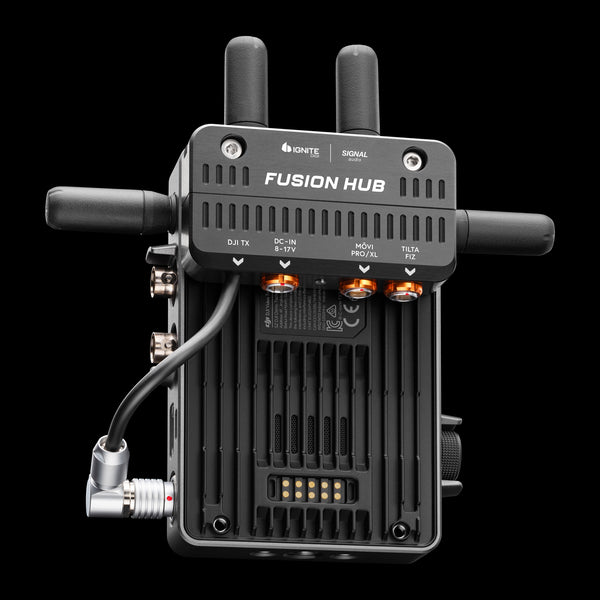

FUSION HUB is a smart module that further enhances Control Deck and CANBUSTER for Inertia Wheels.

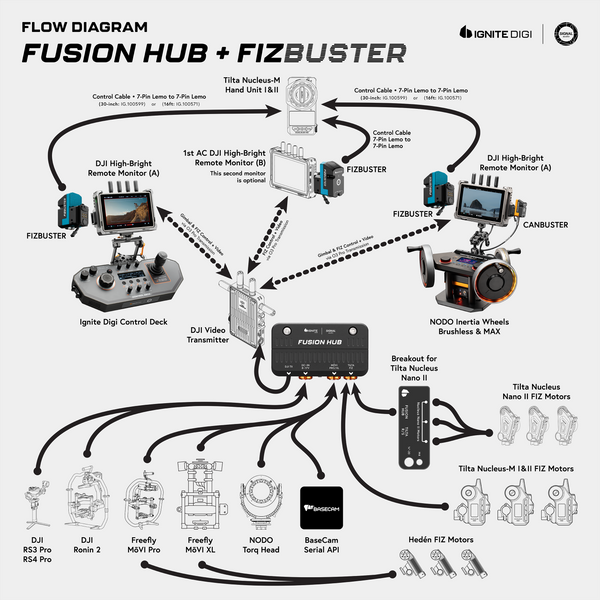

It allows 3-Channel FIZ control using Tilta motors, via the ultra long range DJI Transmission signal! Compatible with Nucleus-M I+II and Nano II.
That means video feed, gimbal control, FIZ control, and run/stop — up to 3.7miles / 6km!
Control Deck has always been able to control RS3 Pro, RS4 Pro, and Ronin 2....FUSION HUB now unlocks Freefly MōVI Pro, MōVI XL, NODO Torq Head, and BaseCam gimbals!

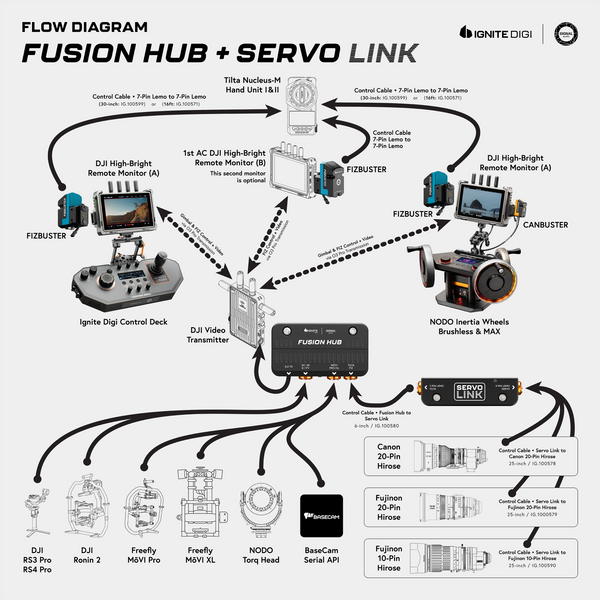

Combine Servo Link with FUSION HUB to remotely control broadcast lenses on those gimbals, like the versatile Canon Cine-Servo 17-120mm

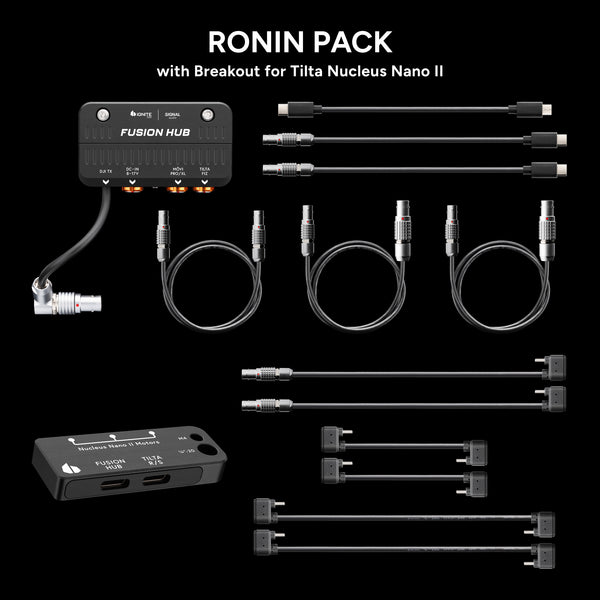

Ignite Digi's comprehensive packs include everything you need — module, cables, screws, handy storage pouch — and it fits inside the Control Deck hard case!
FUSION HUB is a collaborative project between Ignite Digi & Signal Audio.
Specifications
I/O
1x 3.5-inch Integrated Cable with Lemo Anglissimo Right Angle connector for DJI TX
1x 6-Pin Lemo port for DC-IN 8-17V
1x 5-Pin Lemo port for MōVI Pro/XL
1x 7-Pin Lemo port for Tilta FIZ motors/Breakout
MADE FROM
High-grade 6061-T651 aluminum billet
Hard anodized
SHIPS WITH
Two M4 x 16mm captive socket head cap screws
