AVAILABLE FOR PRE-ORDER NOW

5,200W tunable white high intensity point source lamp

Overpower daylight with the most powerful point source LED fixture in the industry, with both tunable white and color capabilities.

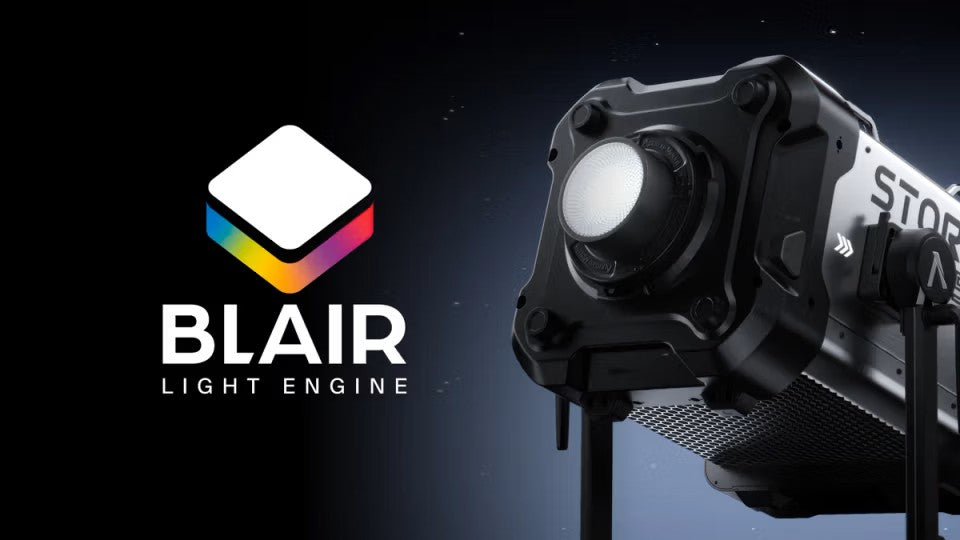

BLAIR: The Best Tunable White Light

The Aputure STORM XT52's BLAIR (Blue/Lime/Amber/Indigo/Red) light engine delivers the highest quality white light with the greatest CCT range and +/- green adjustability of any high output LED fixture. The BLAIR chipset's indigo emitters enhance fluorescing materials like natural daylight and tungsten sources.

The STORM XT52's output is also the brightest of any LED point source fixture in the industry, 41,900 Lux at 5M with a 35° reflector. This exceeds the brightness of a 6,000W HMI fixture.

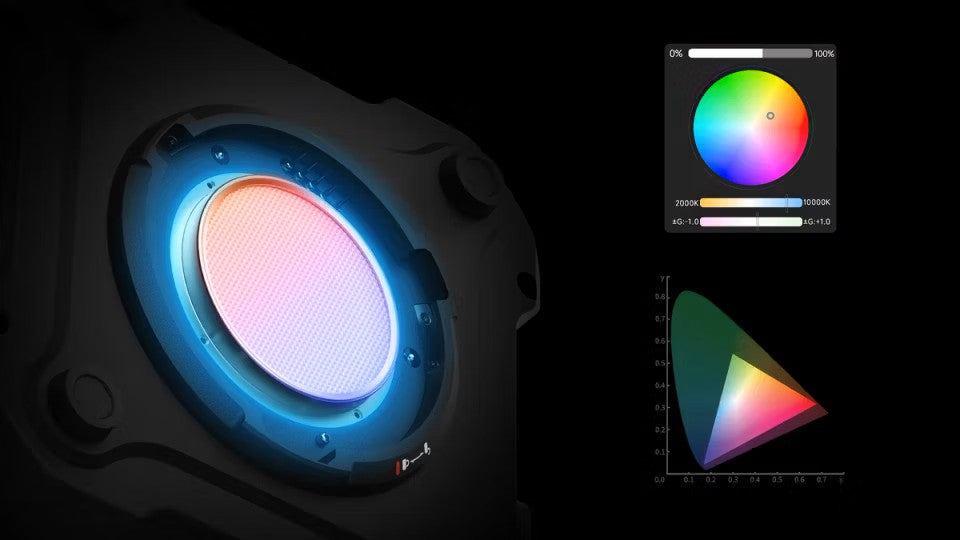

Color Tuning Control

The revolutionary BLAIR light engine is also able to output saturated colors across more than 70% of Rec.2020 color gamut using Limited HSIC+ and x,y control modes. Achieve deep crimson sunsets, rich sodium vapor ambers, and subtle color effects without gels.

STORM XT52 is more than twice as powerful as any other point source color light.

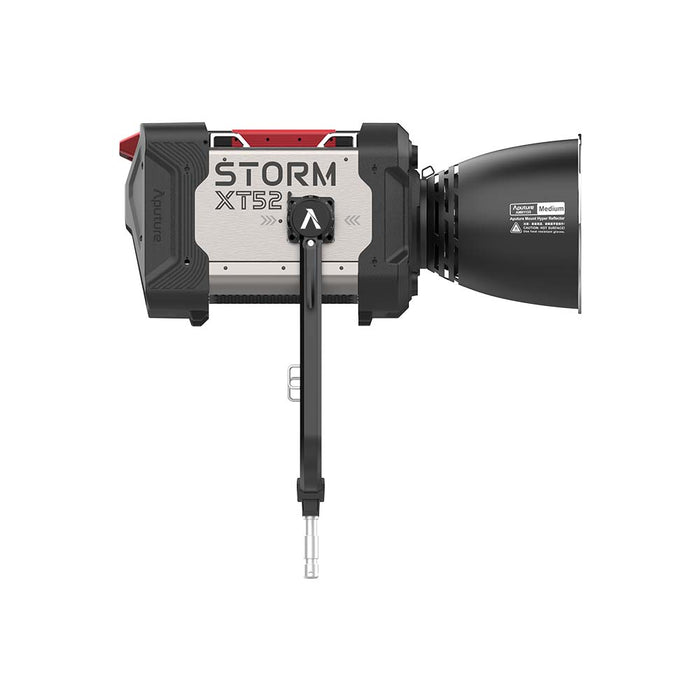

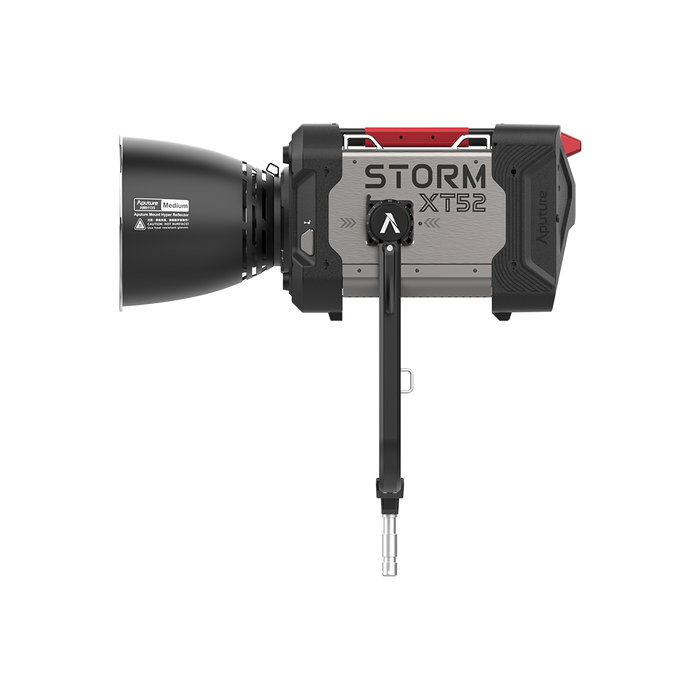

Smallest Size and Lowest Weight in Class

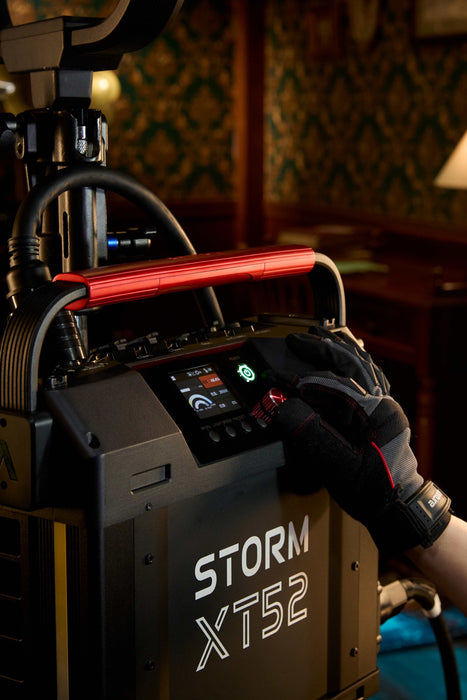

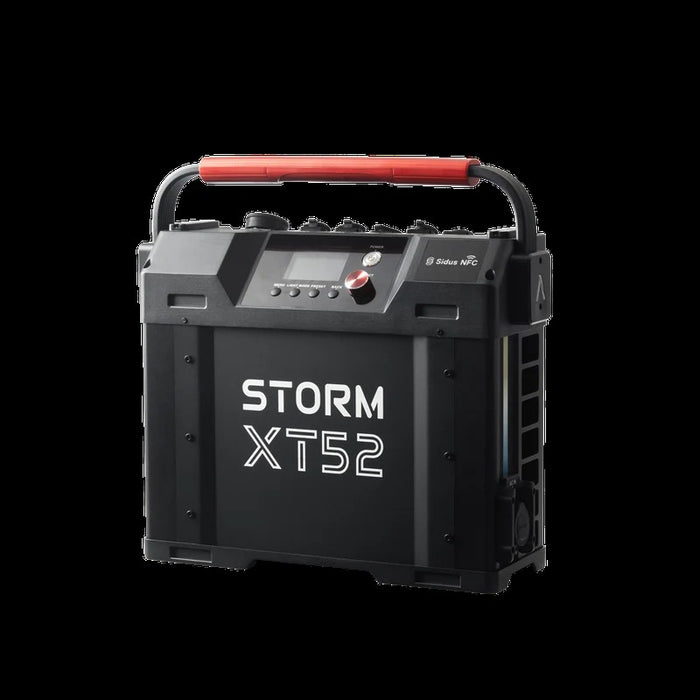

The STORM XT52 lamp head weighs 27.7kg (61lb), and can be lifted by one person and operated on a standard crank stand. The portable XT52 control box is the size of a briefcase and weighs just 13kg (28lb).

Extend Your Reach

Extend the 7.5M STORM XT52 head cable up to 45M. Place the lamp head in a cherry picker and leave the control box on the ground to save on weight and keep physical controls nearby. Power the STORM XT52 at full brightness on standard 6,500W generators.

STORM XT52 Specifications

CCT ​ ​ ​ ​ ​ ​ ​2,500K – 10,000K

CRI ​ ​ ​ ​ ​ ​ ​>96

TLCI ​ ​ ​ ​ ​ ​ ​> 96

CQS ​ ​ ​ ​ ​ ​ ​TBD

SSI (Tungsten) ​ ​ ​ ​ ​87

SSI (D56) ​ ​ ​ ​ ​ ​86

TM-30 RF (Average)  ​ ​ ​ ​96

TM-30 RG (Average) ​ ​ ​ ​101

Operating Voltage Standard Output ​ ​100~240V 50/60Hz

Operating Voltage Full Output ​ ​180~240V 50/60Hz

Max Power Consumption ​ ​ ​(180-240V) Standard Mode 5200W

Max Power Consumption ​ ​ ​(180-240V) Extended Head Cable Mode 6000W

Max Power Consumption ​ ​ ​(100-179V)3200W

Max LED Power Output  ​ ​ ​ ​4800W

AC Power Max Current ​ ​ ​ ​32A

Weather Resistance Rating ​ ​ ​IP65

Native Beam Angle (No Reflector) ​ ​93°

Compatible Aputure Mount Reflectors ​ ​20°, 25°, 50° XT52 Reflectors

Max Head Cable Daisy Chain Length ​ ​45m

Operating Temperature ​ ​ ​ ​-20°C ~ 50°C / -4°F ~ 113°F

Storage Temperature ​ ​ ​ ​-40°C ~ 80°C / -40°F ~ 176°F

Cooling Method ​ ​ ​ ​ ​Liquid + Air Cooling

Fan Noise Levels (1M) High Speed Mode ​56.0dBA

Fan Noise Levels (1M) Default Mode ​ ​45.4dBA

Control Methods

Control Methods ​ ​ ​ ​ ​Onboard, Sidus Bluetooth, DMX, CRMX, Art-Net/sACN

Firmware Upgradeable ​ ​ ​ ​USB-A, Sidus Link, Sidus Link Pro

Wireless Range (Bluetooth & CRMX) ​ ​100m

Screen Type ​ ​ ​ ​ ​ ​TFT

Dimensions

Lamp Head With Yoke  ​ ​ ​ ​55.0 x 54.1 x 83.0cm

​ ​ ​ ​ ​ ​ ​21.7 x 21.3 x 32.7in

Lamp Head Without Yoke  ​ ​ ​55.0 x 35.3 x 36.2cm

​ ​ ​ ​ ​ ​ ​21.7 x 13.9 x 14.3in

Removable Yoke for STORM XT52  ​ ​54.1 x 69.0cm

​ ​ ​ ​ ​ ​ ​21.3 x 27.2in

Control Box  ​ ​ ​ ​ ​ ​41.1 x 16.0 x 38.8cm

​ ​ ​ ​ ​ ​ ​16.2 x 6.3 x 15.3in

Aputure Mount 35° Reflector  ​ ​ ​⌀33.0 x 30.7cm

​ ​ ​ ​ ​ ​ ​⌀16.2 x 6.3 x 15.3in

Weight

Lamp Head With Yoke ​ ​ ​ ​31.30kg / 68.56lbs

Lamp Head Without Yoke ​ ​ ​27.80kg / 61.29lbs

Removable Yoke for STORM XT5 ​ ​ ​23.50kg / 7.72lbs

Control Box ​ ​ ​ ​ ​ ​13.40kg /29.54lbs

Aputure Mount 35° Reflector ​ ​ ​1.50kg /3.31lbs

What's in the Box

STORM XT52 Lamp Head

STORM XT52 Removable Yoke

STORM XT52 Aputure Mount Protection Cover

STORM XT52 Control Box

Aputure Mount 35° Medium Reflector

AC Power Cable (1m)

STORM XT52 Head Cable (7.5m)

Safety Clip

The Aputure STORM XT52 is available for sale from Lorne Lapham Sales & Rentals in Vancouver, BC and we can ship Canada wide.
