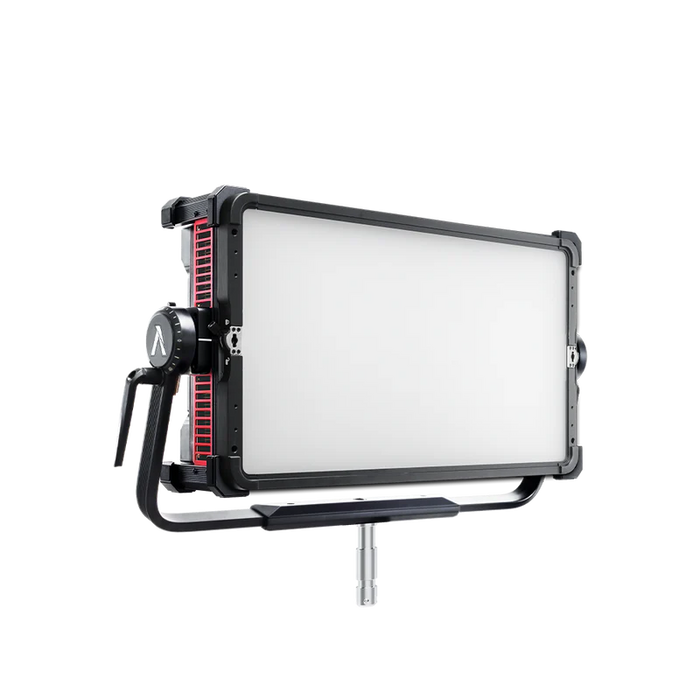

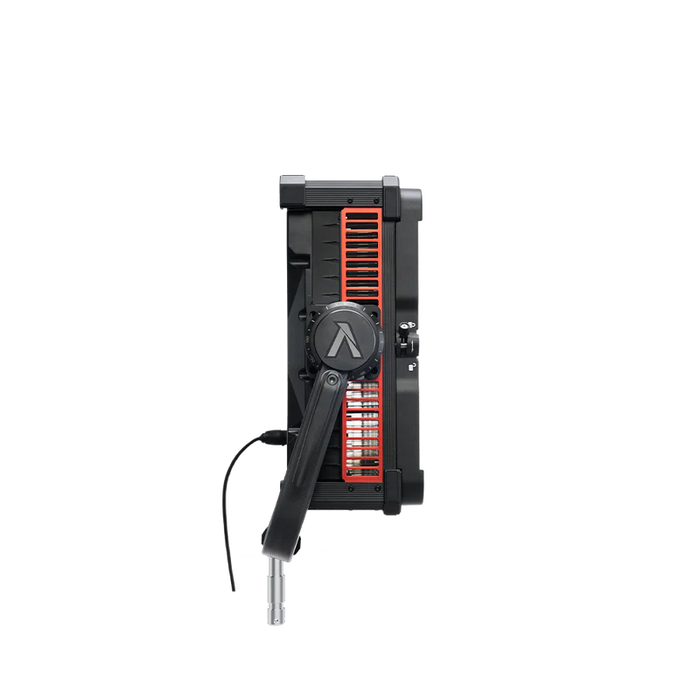

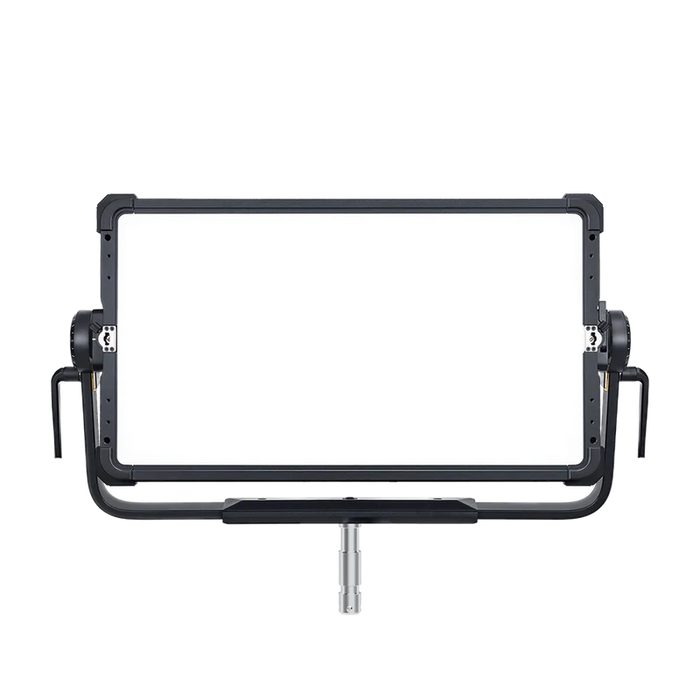

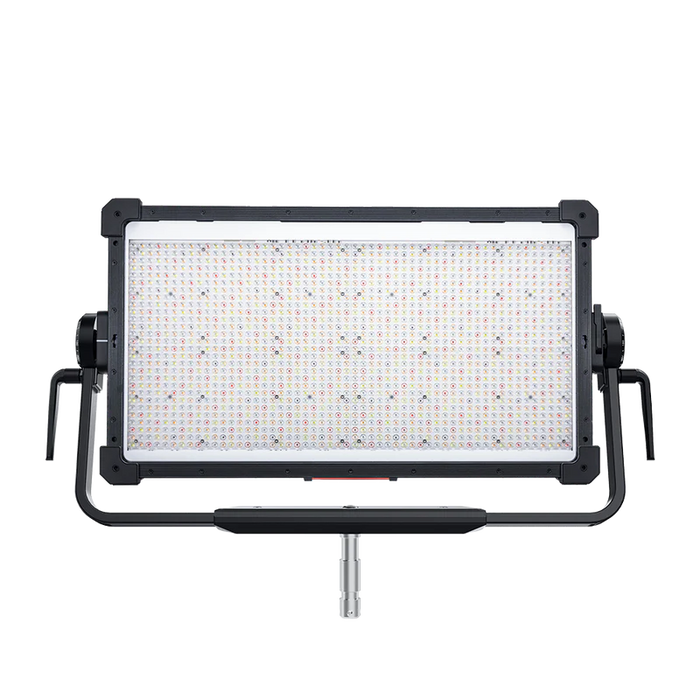

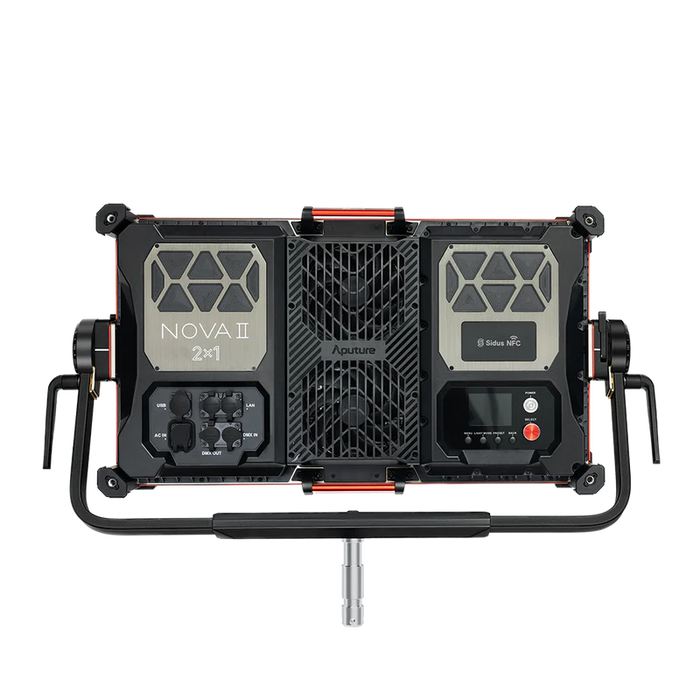

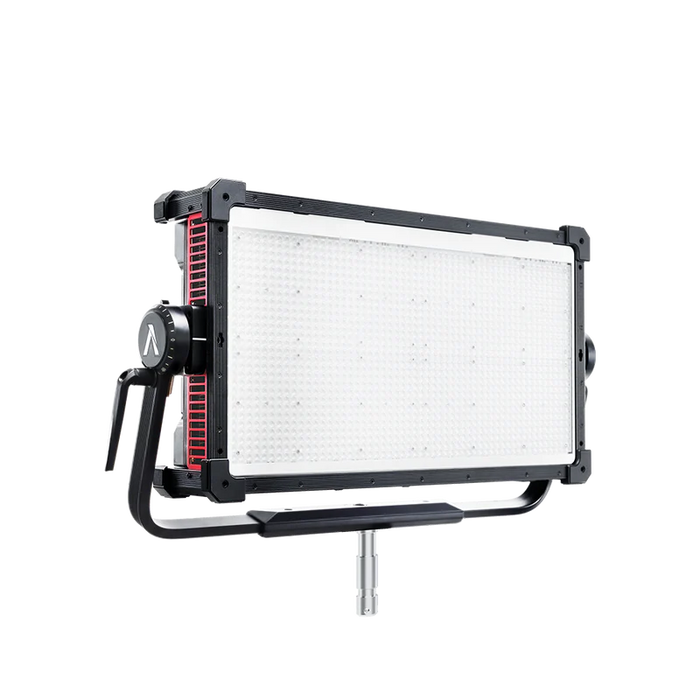

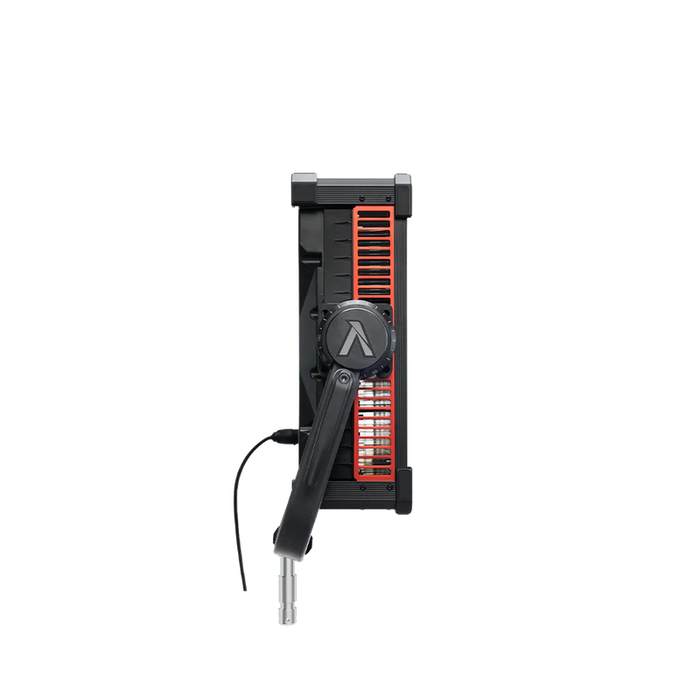

Aputure NOVA II 2x1 (No Case)
Out of Stock – Please email us for an accurate lead time.
NOVA II 2x1
1,000W tunable color high fidelity panel light
Create beautiful soft keys or rich backdrops with this panel light featuring breakthrough light fidelity and color range.
Incredibly Accurate and Natural White Light
The NOVA II 2x1 has a wide range of tunable white light with the best SSI performance to emulate tungsten, daylight, and everything in between. The BLAIR-CG light engine offers a tunable white range from 1,800-20,000K with full 100% MITC +/- Green adjustment. The Indigo emitter activates natural fluorescence for lifelike colors, and a new Deep Red emitter improves skin tone reproduction.
Colors Never Before Achieved in a Panel
The BLAIR-CG light engine in the NOVA II 2x1 covers the greatest range of saturated colors of any panel light. The expanded BLAIR-CG light engine covers more than 90% of the Rec.2020 color space. There are four blues and two reds, including Deep Red, for increased gamut and saturation. Using x,y and HSIC+ modes, dial in precise colors to match products, create backdrops, and even dial in perfect greenscreen or bluescreen keys to match your camera’s sensor.
The Brightest Light, Direct or Diffused
The NOVA II 2x1 delivers a direct 35° beam which remains bright when diffused, providing increased versatility.
The secret to this performance is a unique three-part “focus-then-blend” optical formula. First, focusing TIR lenses are placed over LED emitter clusters. Then, these clusters are kept small and packed at a high density on the panel for increased output. Lastly, these lensed emitter clusters are arranged in a complex neutralizing pattern to produce bright, even light with no visible color fringing on subjects.
Weatherproof, Quiet, Lightweight: Pick All Three
The advanced structural design of the NOVA II 2x1 allows it to achieve three goals normally at odds: low noise, low weight, and IP65 weather protection. The NOVA II 2x1 panel is IP65 weather protected, has fan noise below 40dB in high speed mode, and weighs 18kg including the yoke.

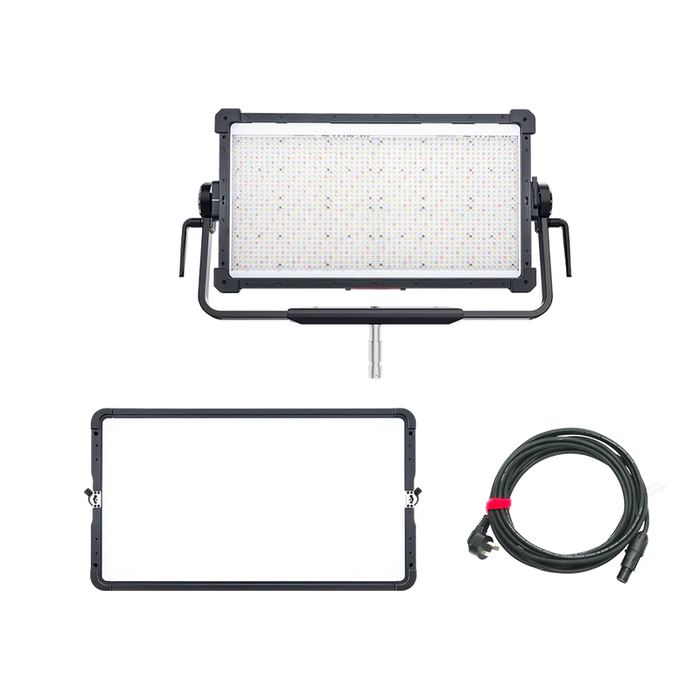

What’s in the Box?
1x NOVA II 2x1 Lamp Head
1x Removable Yoke with Junior Pin
1x NOVA II 2x1 Flat Diffuser
1x AC Power Cable (6m)
NOVA II 2x1 Photometrics
| CCT | Dis. | No Modifier | Flat Diffuser | Dome Diffuser |
|---|---|---|---|---|
| 1,800K | 1m | 85,100 lux 7,906 fc | 18,100 lux 1,682 fc | 17,020 lux 1,581 fc |
| 1,800K | 3m | 12,170 lux 1,131 fc | 2,268 lux 211 fc | 2,085 lux 194 fc |
| 2,500K | 1m | 163,900 lux 15,227 fc | 34,800 lux 3,233 fc | 32,700 lux 3,038 fc |
| 2,500K | 3m | 23,520 lux 2185 fc | 4,350 lux 404 fc | 4,000 lux 372 fc |
| 3,200K | 1m | 194,400 lux 18,060 fc | 40,100 lux 3,725 fc | 37,600 lux 3,493 fc |
| 3,200K | 3m | 27,750 lux 2,578 fc | 5,040 lux 468 fc | 4,610 lux 428 fc |
| 4,300K | 1m | 200,500 lux 18,627 fc | 41,300 lux 3,837 fc | 38,800 lux 3,605 fc |
| 4,300K | 3m | 28,850 lux 2,680 fc | 5,190 lux 482 fc | 4,730 lux 439 fc |
| 5,600K | 1m | 197,300 lux 18,330 fc | 40,700 lux 3,781 fc | 38,200 lux 3,549 fc |
| 5,600K | 3m | 28,380 lux 2,637 fc | 5,130 lux 477 fc | 4,680 lux 435 fc |
| 6,500K | 1m | 194,800 lux 18,098 fc | 40,200 lux 3,735 fc | 37,800 lux 3,512 fc |
| 6,500K | 3m | 27,970 lux 2,599 fc | 5,070 lux 471 fc | 4,620 lux 429 fc |
| 10,000K | 1m | 179,400 lux 16,667 fc | 36,500 lux 3,391 fc | 34,300 lux 3,187 fc |
| 10,000K | 3m | 25,900 lux 2,406 fc | 4,620 lux 429 fc | 4,190 lux 389 fc |
| 20,000K | 1m | 158,800 lux 14,753 fc | 31,300 lux 2,908 fc | 29,410 lux 2,732 fc |
| 20,000K | 3m | 22,880 lux 2,126 fc | 3,940 lux 366 fc | 3,600 lux 334 fc |
NOVA II 2x1 Specifications
Color Specifications
LED Chipset BLAIR-CG
CCT 1,800K – 20,000K
CRI ≥95
TLCI ≥95
SSI (Tungsten) 90
SSI (D56) 86
TM-30 RF (Average) 95
TM-30 RG (Average) 100
Power Specifications
Max Power Consumption 1,250W
Max Power Output 1,000W
AC Operating Voltage 100V ~ 240V / 50-60 Hz
Optical Specifications
Native Beam Angle 35º
Included Flat Diffuser Beam Angle 95º
Pixel Count 2 pixels
Control and Firmware
Control Methods On-board, Sidus Link, Sidus Link Pro, DMX512-A, LumenRadio CRMX, Art-Net/sACN, RDM
Control Ports 1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking Ethernet ports
Firmware Upgradeable Sidus Link, Sidus Link Pro, USB-A
Wireless Range (Bluetooth & CRMX) ≤100m / ≤328.1ft
Environmental Specifications
Weather Resistance RatingIP65
Operating Temperature -20ºC ~ 45ºC / -4ºF ~ 113ºF
Storage Temperature -40ºC ~ 85ºC / -40ºF ~ 176ºF
Cooling Method Active (onboard fans)
Lamp Head Fan Noise Levels Smart Mode Variable
Lamp Head Fan Noise Levels High Speed Mode 40 dBa
Lamp Head Fan Noise Levels Medium Speed Mode 35 dBa
Lamp Head Fan Noise Levels Silent Mode 0 dBa
Dimensions
Lamp Head (without Yoke) 69.1 x 38.8 x 13.6cm / 27.2 x 15.3 x 5.4in
Lamp Head (with Yoke) 82.9 x 56.6 x 15.4cm / 32.7 x 22.3 x 6.1in
Flat Diffuser 68.4 x 37.5 x 4.0cm / 26.9 x 14.8 x 1.6in
Weight
Lamp Head (without Yoke) 16.25kg / 35.83lbs
Removable Yoke with Junior Pin 2.40kg / 5.29lbs
Flat Diffuser 2.00kg / 4.45lbs
AC Power Cable (6m) 0.80kg / 1.76lbs
